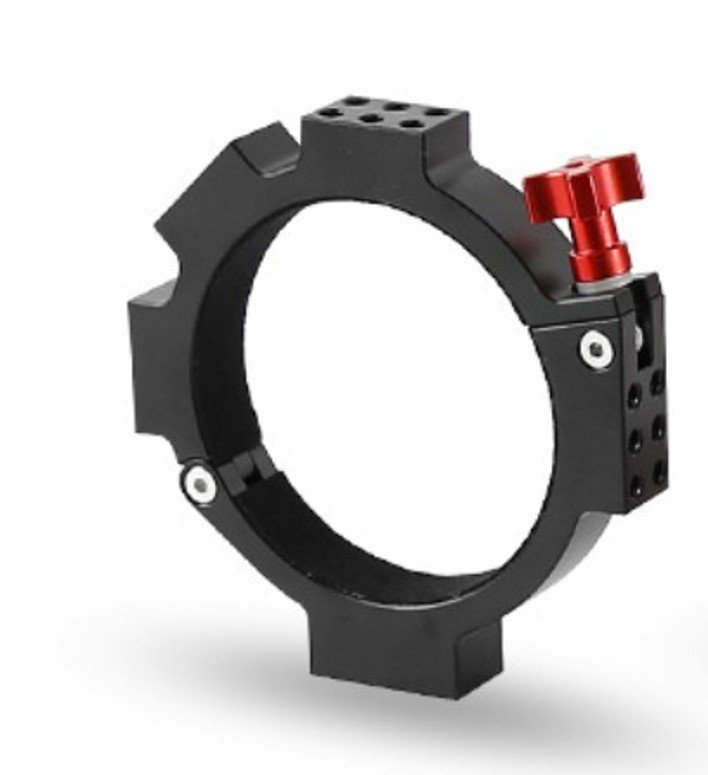

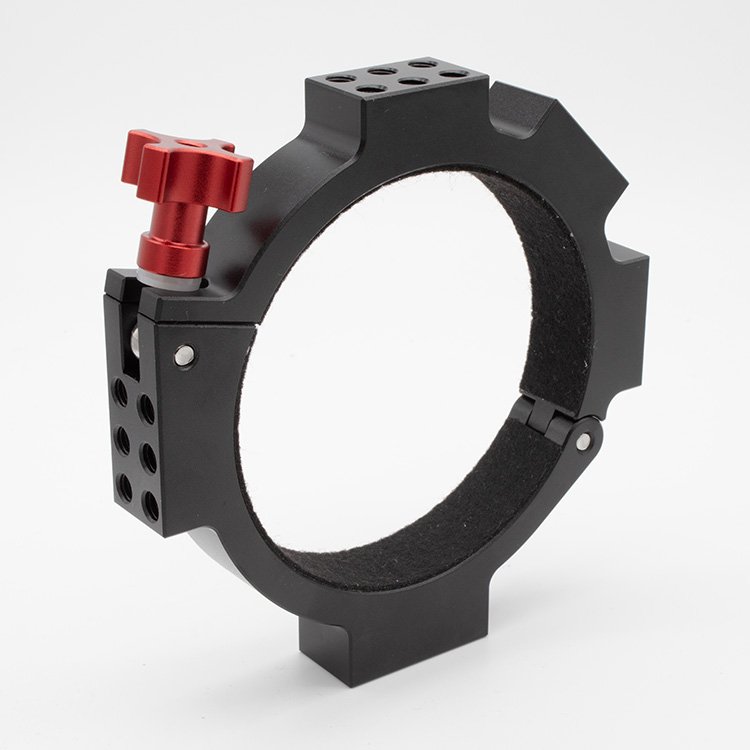

This mounting clamp has an internal diameter of 78mm and will become the backbone of a miniature imaging rig with a cooled deep-sky camera and a camera lens.

The ring bolts to a dovetail bar that can be mounted directly onto an equatorial mount. Alternatively, it can be bolted to a dovetail above an existing rig.

It also has a series of threaded holes to allow mounting of equipment such as guide cameras, focus motors, etc. These holes are M6 and 1/4″.

The clamp is suitable for the following cameras:

• ZWO
  • ASI990MM PRO
  • ASI992MM PRO
  • ASI294MC/MM PRO
  • ASI183MC/MM PRO
  • ASI533MC/MMPRO
  • ASI585MC/MM AIR
  • ASI585MC/MM PRO

Usage example

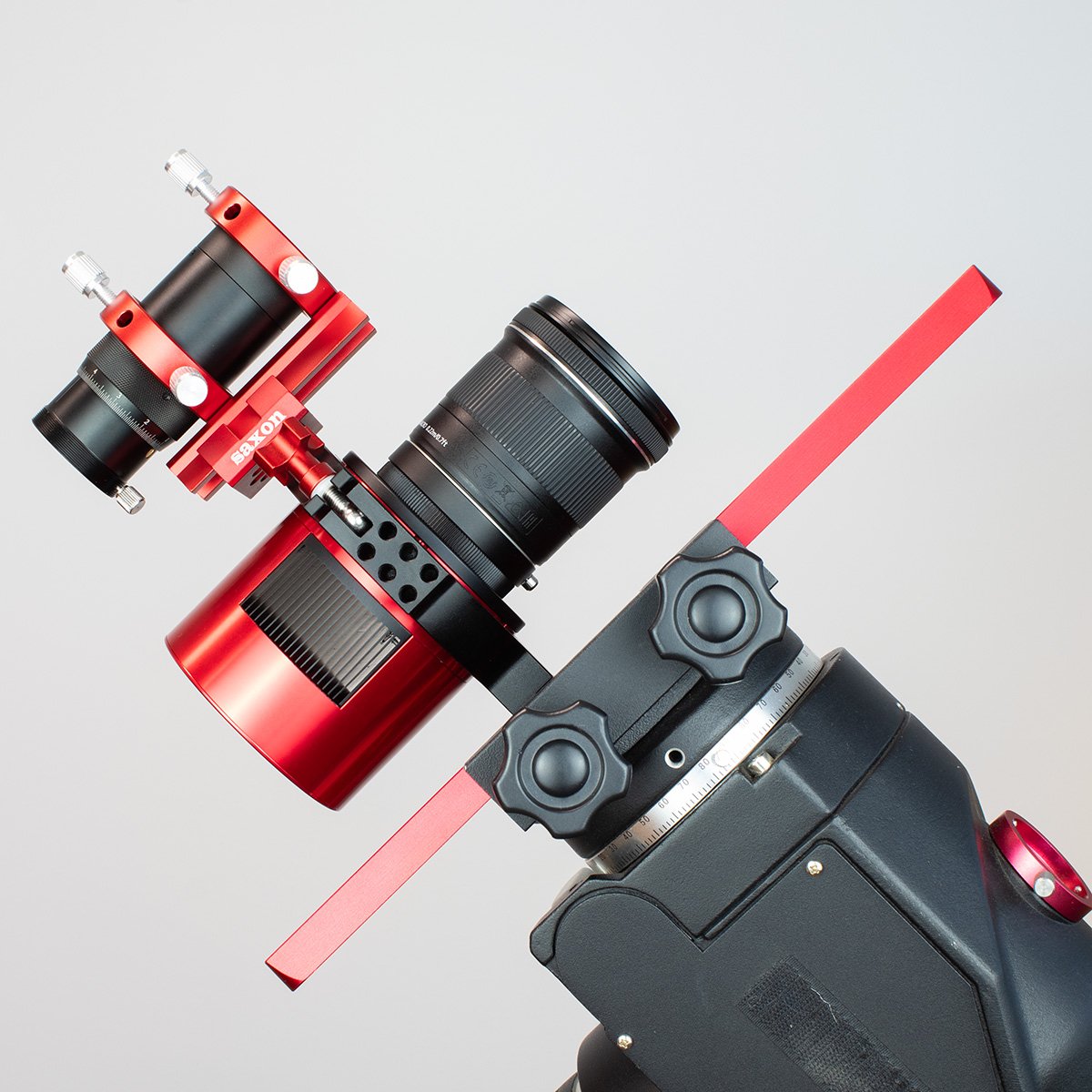

Here is an example of how the ring is used. The camera mounting ring fits on a cooled deep-sky camera which has been attached to a camera lens for wide angle imaging. The ring is mounted on a saxon Multipurpose Dovetail Mounting Plate using M6 bolts from beneath the plate. This will hold the camera and lens firmly on the mount. For autoguiding, a Sidereal Trading 2-Ring 30mm f/4 Guidescope can be fixed to the top of the camera mounting ring using a saxon Multipurpose Finder Shoe Bracket.
