Antlia Edge narrowband filter optimizes the FWHM (full width half maximum) to 4.5nm bandpass. The suppression of optical density (OD)5 on unwanted wavelengths and the excellent transmittance characteristics found in the Antlia 3nm Pro series has been incorporated into the 4.5nm Edge narrowband filters. The result is that these filters deliver superior SNR (signal to noise ratio) and better contrast in your images.

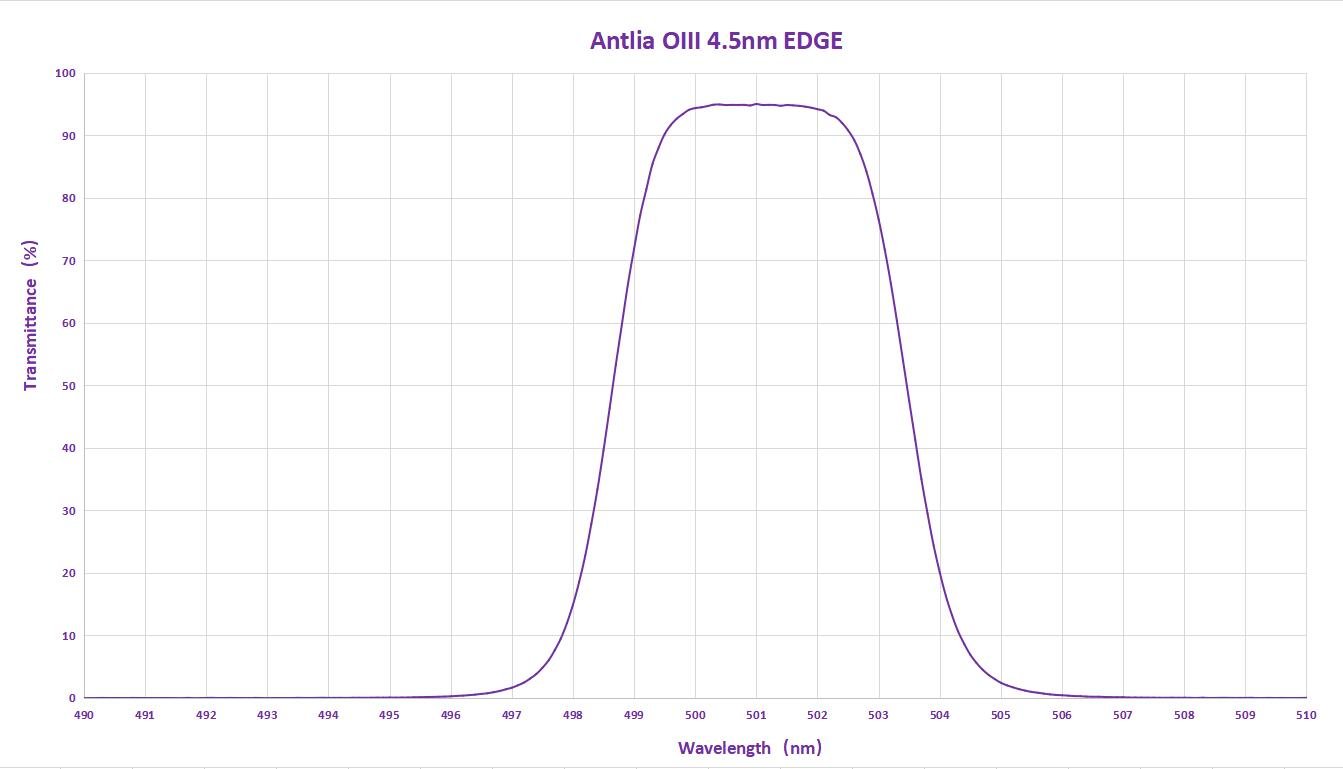

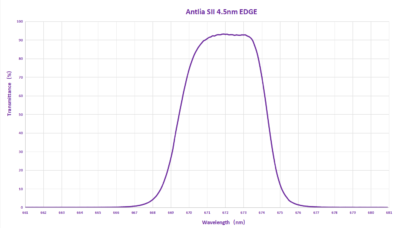

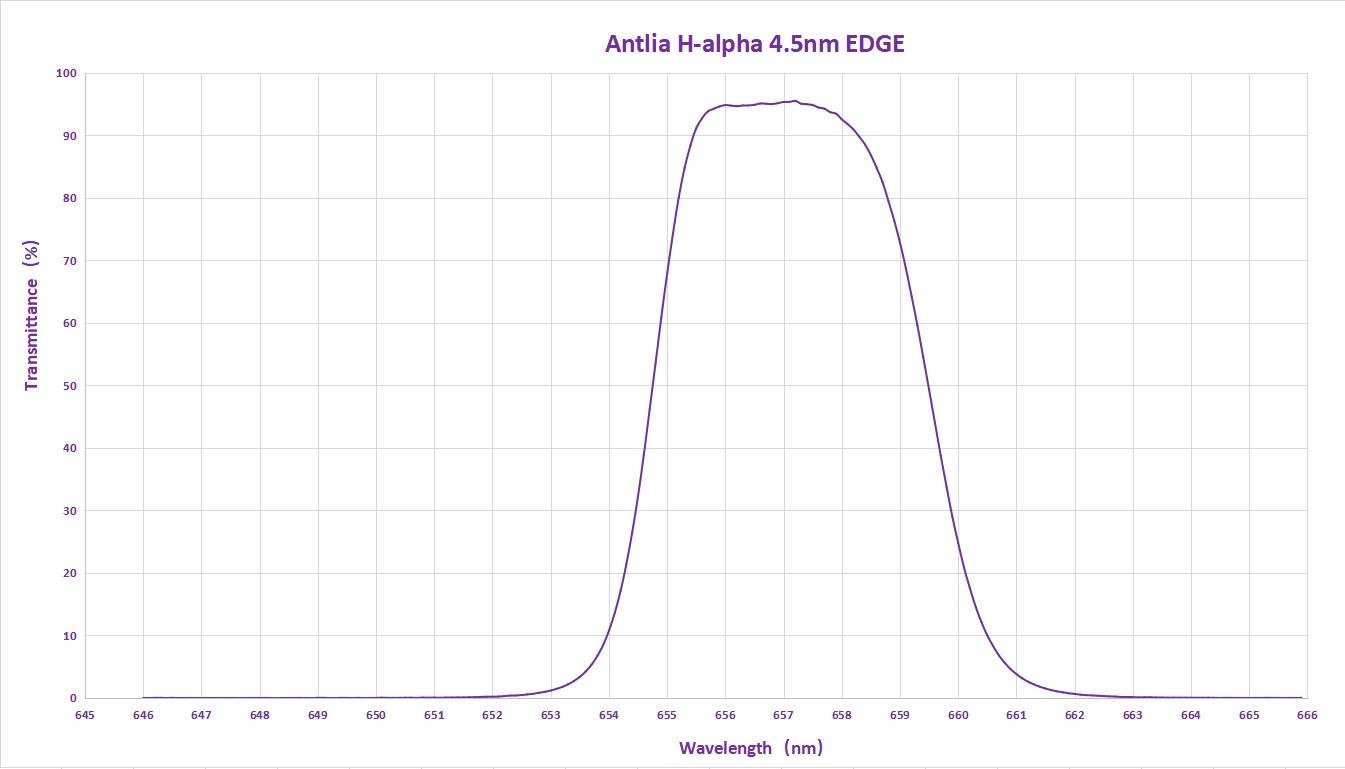

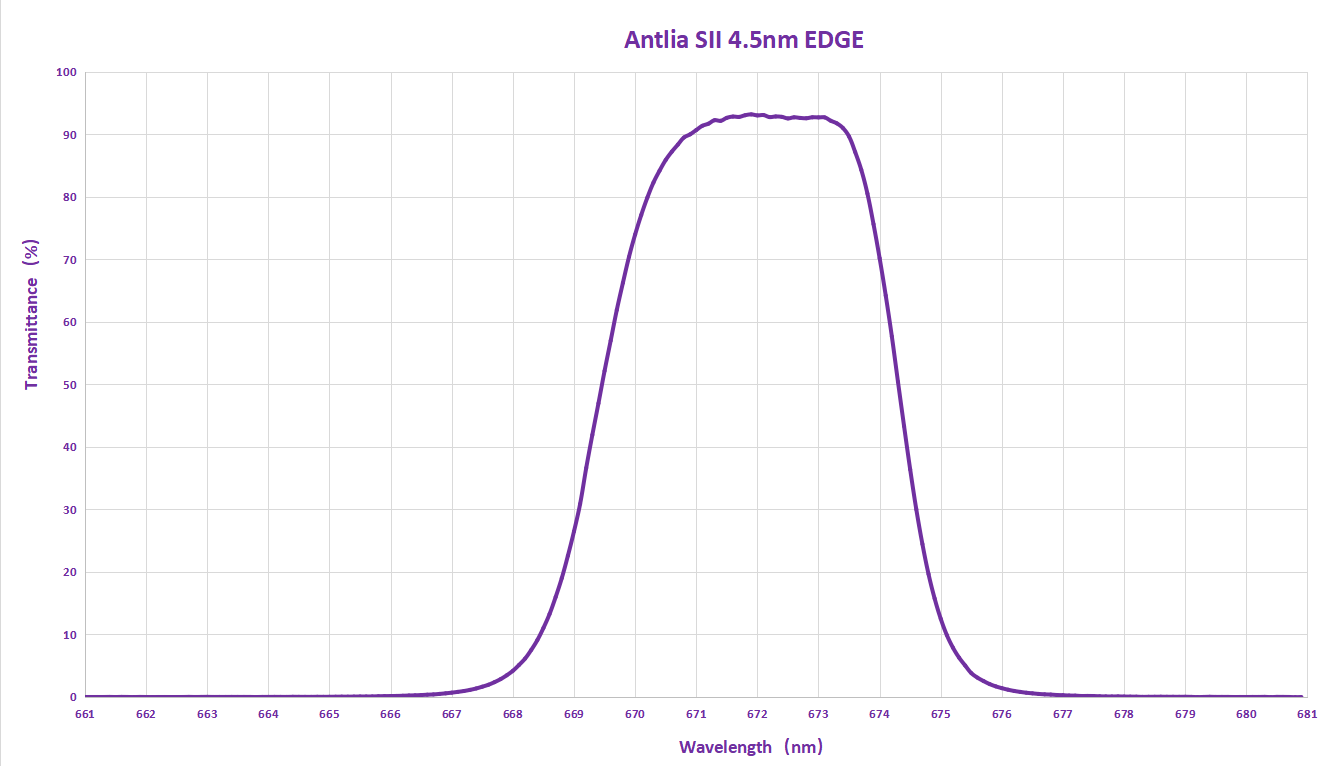

Antlia 4.5nm Edge filters are designed to deliver high transmittance at the corresponding centre lines (for Sii: 672.4nm; for Ha: 656.3nm; for Oiii: 500.7nm) that provides you with the maximum signal to reveal the faintest structures.

Conventional broader narrowband filters cause a heavy loss in transmission due to the strong Center Wavelength (CWL)-shift. We guarantee T>90% within 1nm range of the center bandwidth, which means that the Antlia 4.5nm EDGE narrowband filters can guarantee high transmittance for working with both long focal ratios and fast optical systems. Blue-shift data shows that Antlia 4.5nm EDGE filters can be used with nearly all systems as fast as f/3 with minimal loss in emission signal and meets the requirements of fast optics.

Application and Performance:

• High transmittance and narrow bandwidth to maximize contrast
• Steep spectral profile minimizes halos around bright stars
• A single substrate to eliminate internal reflections
• Narrowband Objects: Emission Nebulae, Planetary, Wolf Rayet Nebulae and Supernova Remnants
• Use in light polluted areas and dark sites
• Extends imaging time when the moon is up
• Antlia narrowband EDGE filters can be used down to f/3 systems with minimal loss of signal
• All Antlia unmounted filters are edge blackened to eliminate internal reflections from stray light
• Superior optical reliability reduces post image processing
