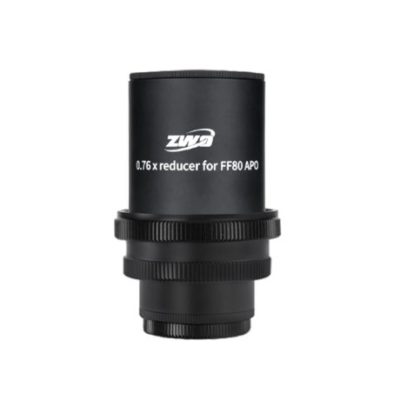

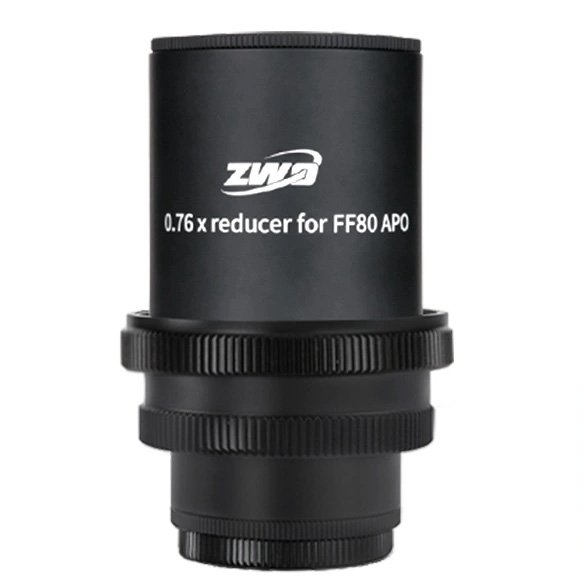

ZWO has also released a new 3-inch FF80APO 0.76X full frame reducer with a three-element optical design, including one element made of ED glass. Its reduction factor is 0.76x, which gives the FF80APO f/7.5 astrograph a shortened focal ratio of f/5.7 and a shorter focal length of 312mm. This allows for less total integration time and a wider field of view, bringing more convenience and possibilities for your wide-field deep sky imaging.

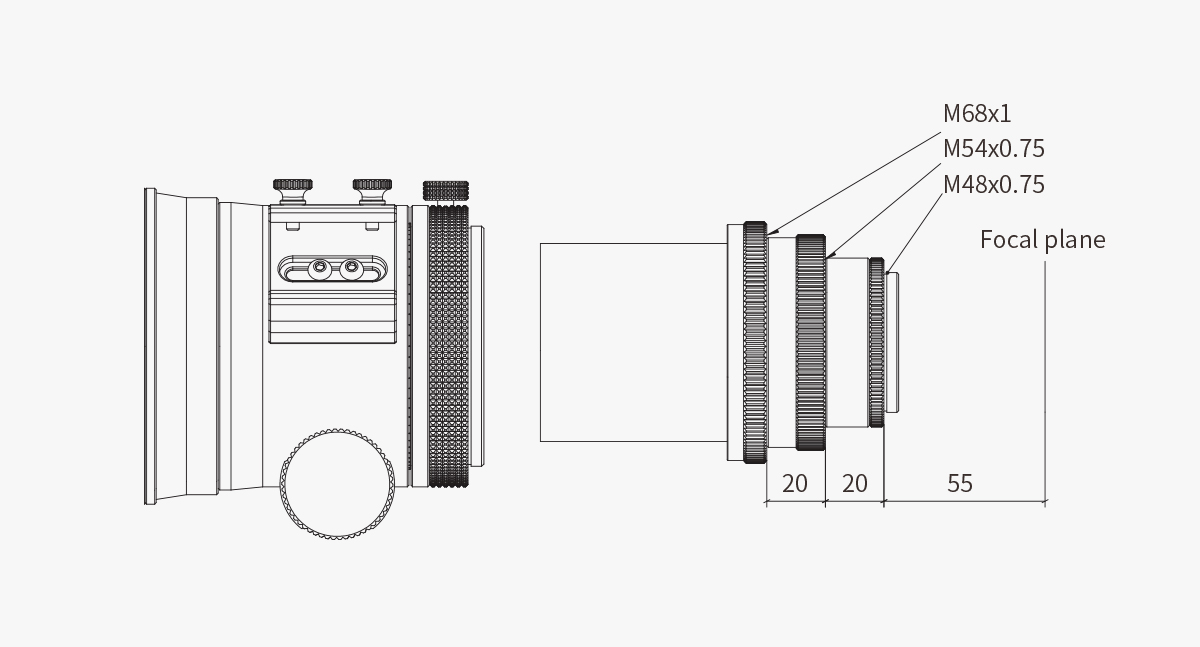

The reducer has a rear interface that attaches to the FF80APO telescope tube’s included four-segment camera extension tube. The back focus is the standard 55mm, and it has a built-in M48X0.75 2-inch filter thread for easy attachment.

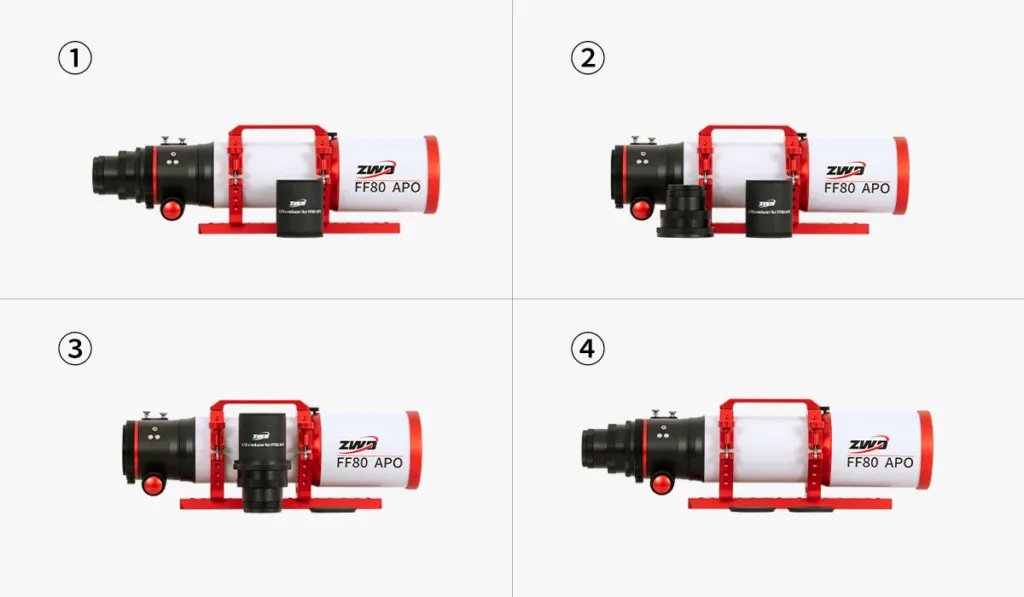

Connection steps:

1. Prepare the FF80APO telescope tube and the focal reducer.
2. Unscrew the four-segment connector at the end of the FF80APO telescope tube.
3. Unscrew the end cap of the 0.76X reducer and attach it to the M68 thread of the four-segment connector.
4. Unscrew the front cap of the reducer, insert it into the focuser inner tube, and tighten it.
