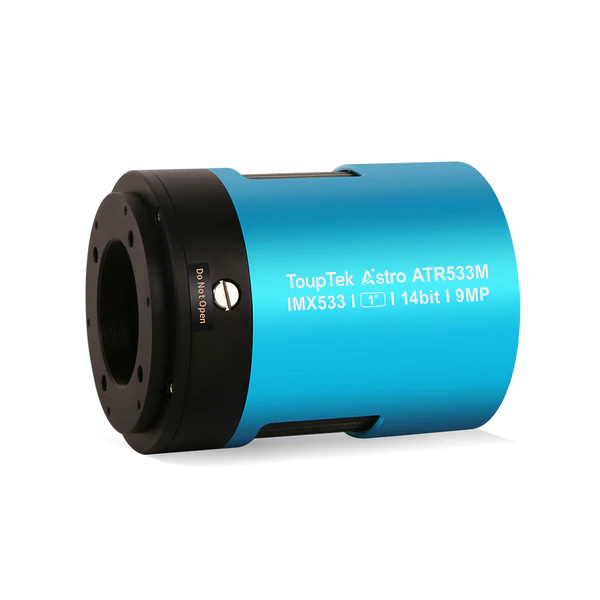

The ToupTek ATR3CMOS09000KMA (known by us as an ATR533M) incorporates the 9 megapixel Sony IMX533 CMOS sensor. This is a monochrome camera which is designed for long exposure deep-sky astrophotography.

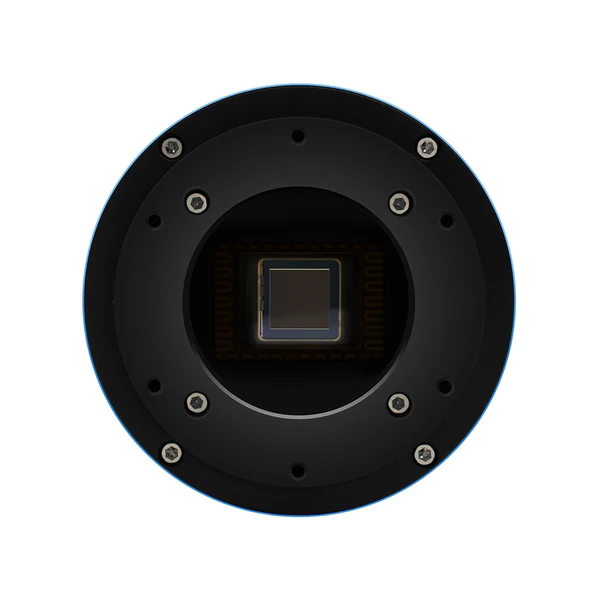

The sensor in the ATR533M is a square 1″ size (11.3 x 11.3mm) sensor with 4.63µm pixels. If you have a telescope with a focal length of 1000mm, your field of view will be 38.9 arcminutes (square), at a resolution of 0.78 arcseconds per pixel.

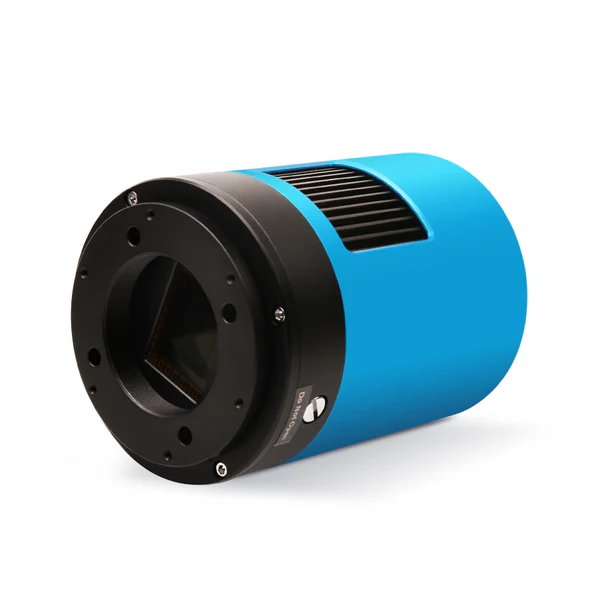

The ATR533M has a two-stage fan-forced Peltier cooling system which is capable of cooling the sensor up to 45°C below the ambient air temperature. This decreases image noise, especially over long exposures, and will therefore greatly increase the signal to noise ratio. This lower noise gives you a better image overall, because you can retrieve dark details of nebulas and galaxies in the darker areas. The designers of the camera have ensured that that heat transfers quickly away from the sensor.

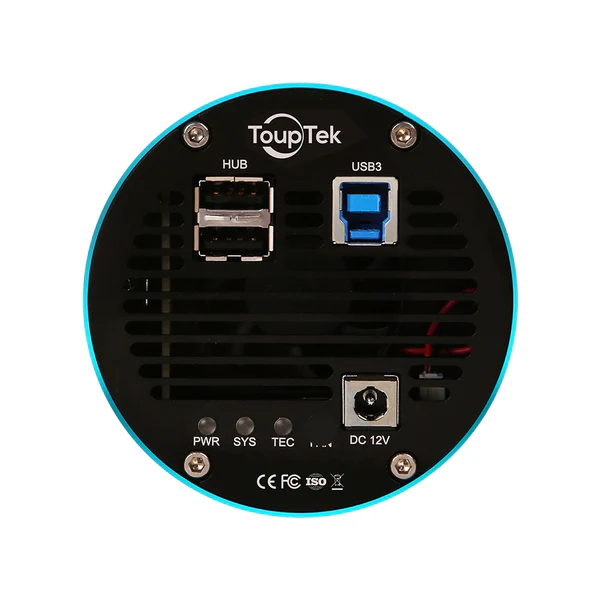

The camera communicates with the computer using a USB3.0 cable (included with the camera). It has a native driver, but an ASCOM driver is also included. This means that normal image acquisition software (like NINA, Voyager, Sequence Generator Pro, etc.) can be used with the camera. In addition to this, the camera comes with an advanced video and image processing application ToupSky.

ATR533M camera details

DDR3 bufferDew heaterAdditional information

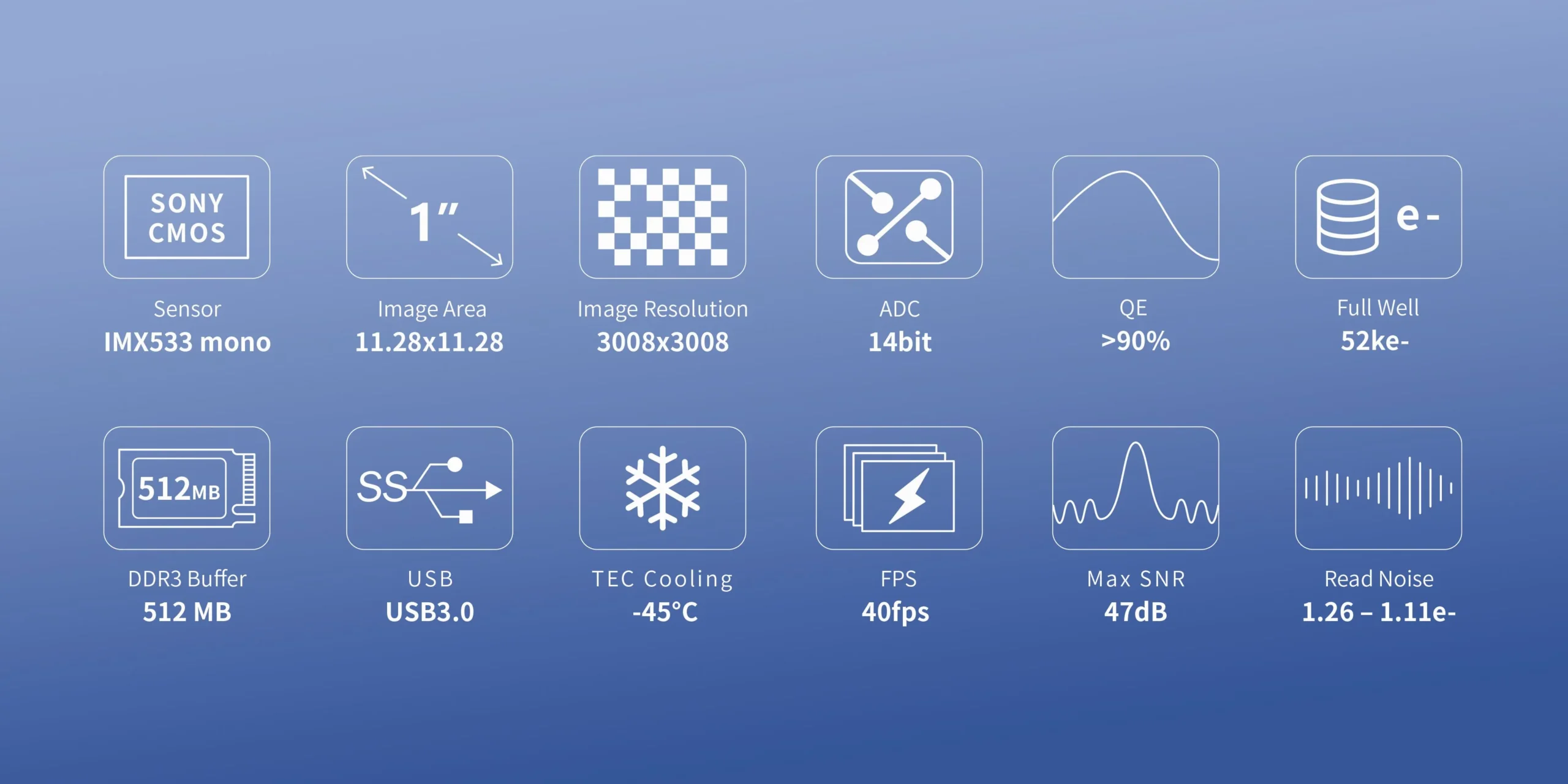

Specifications of the ToupTek ATR294C

ToupTek part number ATR3CMOS09000KMA
Short name ATR533M
Name Sony IMX533
Size class 1″
Size (mm)  11.3 x 11.3
Full resolution (px) 3008 x 3008
Diagonal (mm) 16.0
Megapixels 9
C/M monochrome
Pixel size (µm) 3.76
DDR3 buffer 512 MB
Download speed (FPS) 40
Quantum efficiency >90%
Full well 52 ke-
Max SNR 47 dB
Cooling ability 45°C below ambient
Read noise 1.26 – 1.11 e-
ADC 14 bit

Contents:

  • camera (with M42 male adapter attached)
  • power supply and mains cable
  • USB3 A-B cable
  • rubber sensor cover
  • M42 female adapter for front of camera
  • 16.5mm extender (replaces OAG)
  • 21 mm extender (replaces filter wheel)
  • 48mm to 42mm stepdown ring
  • heavy duty carry case
  • software on USB drive

What's in the box

The user manual for the ATR533M can be downloaded here.

ATR533M spectral response graphATR monochrome back focus diagram
