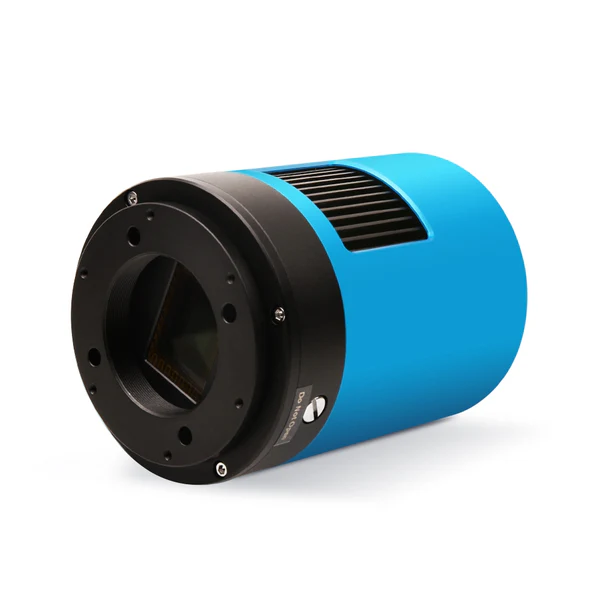

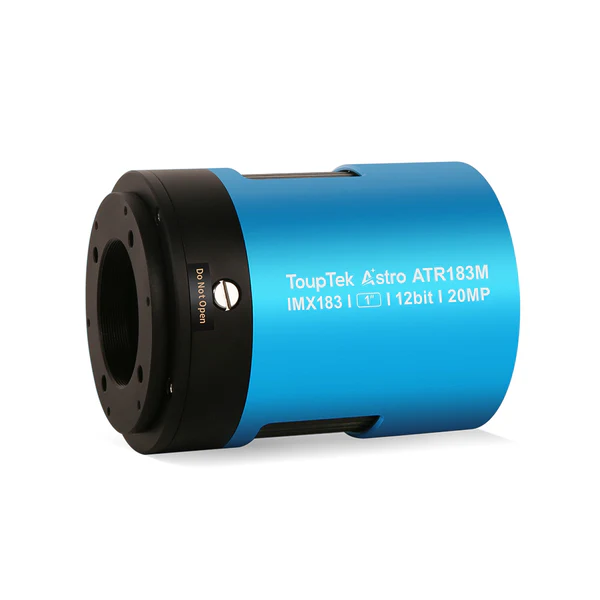

The ToupTek ATR3CMOS20000KMA (known by us as an ATR183M) incorporates the 20 megapixel Sony IMX183 CMOS sensor. This is a monochrome camera which is designed for planetary photography, as well as deep-sky astrophotography.

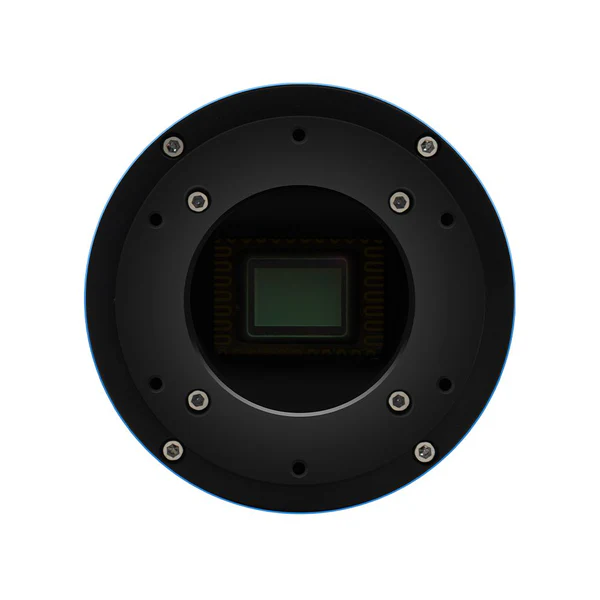

The sensor in the ATR183M is a 1″ size (13.1 x 8.8mm) sensor with very small 2.4µm pixels. If you have a telescope with a focal length of 1000mm, your field of view will be 44.9 x 30.1 arcminutes, at a resolution of 0.50 arcseconds per pixel.

The ATR183M has a two-stage fan-forced Peltier cooling system which is capable of cooling the sensor up to 45°C below the ambient air temperature. This decreases image noise, especially over long exposures, and will therefore greatly increase the signal to noise ratio. This lower noise gives you a better image overall, because you can retrieve dark details of nebulas and galaxies in the darker areas. The designers of the camera have ensured that that heat transfers quickly away from the sensor.

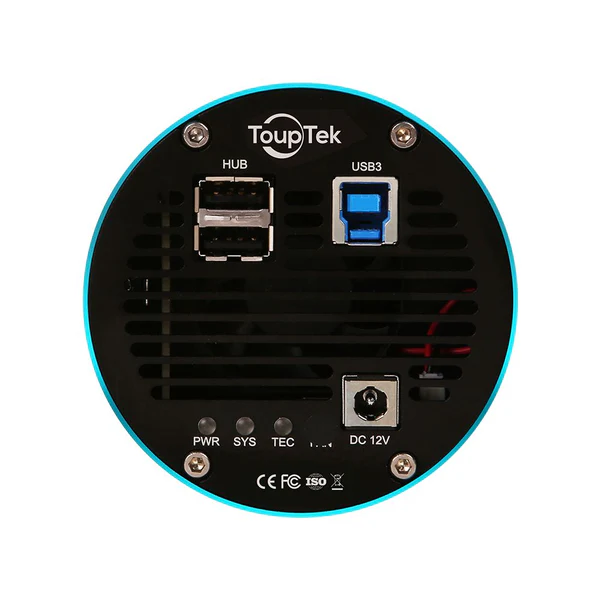

The camera communicates with the computer using a USB3.0 cable (included with the camera). It has a native driver, but an ASCOM driver is also included. This means that normal image acquisition software (like NINA, Voyager, Sequence Generator Pro, etc.) can be used with the camera. In addition to this, the camera comes with an advanced video and image processing application ToupSky.

Camera details

Sensor detailsDDR3 bufferDew heaterAdditional information





Specifications of the ToupTek ATR294C

ToupTek part number ATR3CMOS20000KMA
Short name ATR183M
Name Sony IMX183
Size class 1″
Size (mm)  13.1 x 8.8
Full resolution (px) 5440 x 3648
Diagonal (mm) 15.7
Megapixels 20
C/M monochrome
Pixel size (µm) 2.4
DDR3 buffer 512 MB
Download speed (FPS) 18
Quantum efficiency >84%
Full well 15 ke-
Max SNR 41.6 dB
Cooling ability 45°C below ambient
Read noise 2.6 – 1.4 e-
ADC 12 bit

Contents:

  • camera (with M42 male adapter attached)
  • power supply and mains cable
  • USB3 A-B cable
  • rubber sensor cover
  • M42 female adapter for front of camera
  • 16.5mm extender (replaces OAG)
  • 21 mm extender (replaces filter wheel)
  • 48mm to 42mm stepdown ring
  • heavy duty carry case
  • software on USB drive

What's in the box
