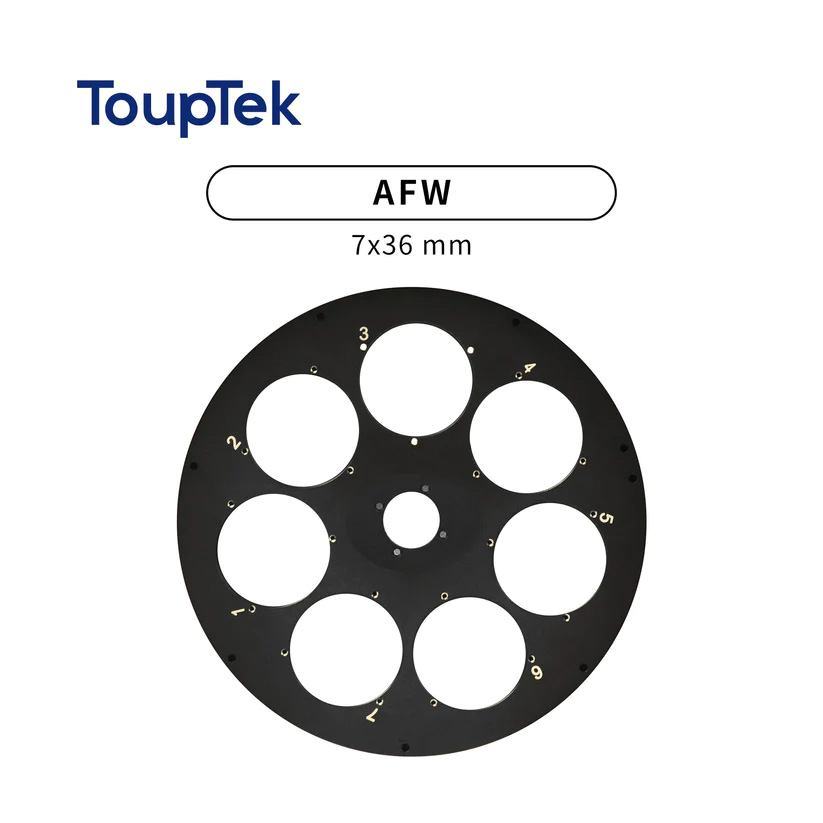

The ToupTek 7x36mm AFW features a 7 position carousel for 36mm unmounted filters. This size filter is appropriate (depending on optical speed) for camera sensors up to four-thirds without vignetting.

The filter wheel is 20mm in optical length and has M54F threads at both ends. It may also be bolted to other components such as cameras or off-axis guiders.

With the standard extenders and adapters included in the package, the ToupTek AFW can reach 55mm back focal distance perfectly with any ToupTek cooled camera. It is also compatible with other cameras with 17.5mm back focal distance or 12.5mm back focal distance.

ToupTek Filter Wheel supports USB2.0 interface and also is powered through the USB2.0 connection. Users simply needs to connect the filter wheel with any PC control device then the filter wheel is good to go.

Imaging train with camera lens

Number of slots: 7
Filters supported: 36mm unmounted
Adaptor connection: M54 both sides
Optical Length: 20mm
Power supply: USB2.0
Stepper motor driven
Weight: 510g
Thickness: 20mm
Casing material: aluminium
Support ASCOM driver

The ToupTek AFW contains the following:

1: Automatic Filter wheel body
2: USB2 cable
3: Phillips head screwdriver plus screws
4: M42M-M54M adapter (length 1mm)
5: M48M-M42F adapter (zero length)
6: M54M-M48F adapter (length 16.5mm) to replace OAG

Box contents
