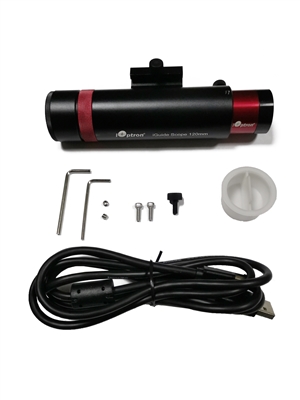

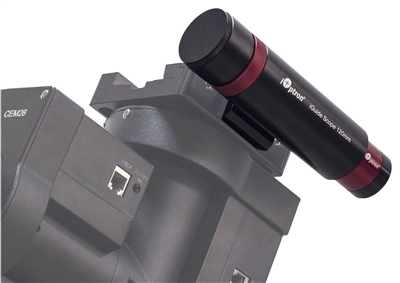

iOptron iGuideTM compact autoguider system consists of portable mini guiding scope with a diameter of 30mm and focal length 120mm (Part # IOPTRON-3661) and a iGuider Camera (Part # IOPTRON-3362). The resolution of the autoguider is 6.44 arc sec/pixel, especially suitable for guiding with short to medium focal length telescopes. With dielectric AR-coated achromatic lenses, iGuide Scope is sharp in imaging and ensures high quality guiding. iGuide autoguider can mate with iOptron CEM26/GEM28 mounts seamlessly without any adapter. It also comes with a standard finder scope dovetail, readily fits with telescopes that have finder scope slot.
Technical Specs
iGuider autoguiding system (IOPTRON-3660) includes an iGuider Scope (IOPTRON-3661) and an iGuider Camera (IOPTRON-3662).
iGuide Scope:
Weight: 200 g (including iGuide Scope and iGuider camera)
Aperture: 30mm
Focal length: 120mm
Focal ratio: F/4
iGuider Camera:
Pixel size: 3.75μm
Pixel array: 1280*960
Mega pixel: 1.2 MP
Chip size: 1/3”
Resolution: 6.44 arcsec/pixel (coupled with iGuide Scope)
Guiding method:Support Pulse Guiding (ASCOM Guiding), not support ST-4 Guiding
|
|
