Two exciting new Alt-Az strain wave mounts, HAZ31 and HAZ46, are added into iOptron strain wave gear mount family!

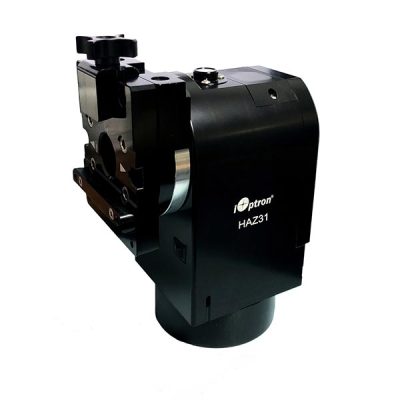

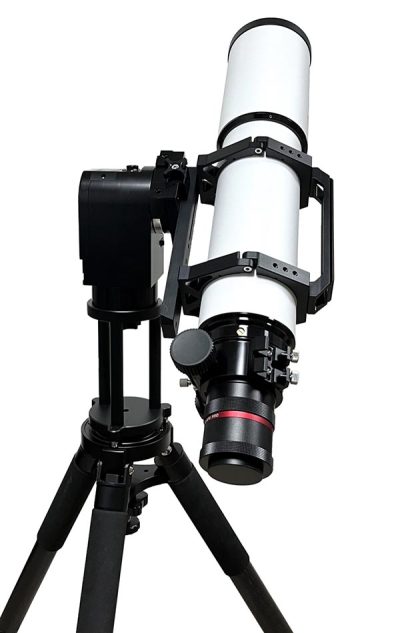

This light weight, compact, medium payload HAZ31 mount will deliver an astronomy experience like never before. With a mount head weighing in at 8.2 lbs, HAZ31 has a payload capability 31 lbs, without needing a cumbersome counterweight or shaft. HAZ mounts will support a large variety of instruments where flexibility is needed for outreach programs and satellite tracking. The multi position saddle (can be placed on top or to the side) uniquely setting up the HAZ31 to accommodate binoculars. Just turn the mount on, it will calibrate itself and GoTo the first target utilizing our time tested “Lever and Go” technology.

Utilizing state of the art strain wave gear technology for both RA and DEC movement, the HAZ31 deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake on both ALT and AZI allows the mount safely stop.

An HAZ31 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

(Actual contents may differ from the image)

Features

  • Advanced strain wave gear system technology
  • Payload capacity of 14 kg (31 lbs) with the mount weight of 3.7 kg (8.2 lbs, include dovetail saddle)
  • CNC machined
  • Unique friction brake on both AZI and ALT to safely stop movement during a planned or unplanned power interruption
  • Go2Nova® hand controller with ~212,000 object database
  • Dual saddle (Vixen and Losmandy-D styles)
  • Level & Go

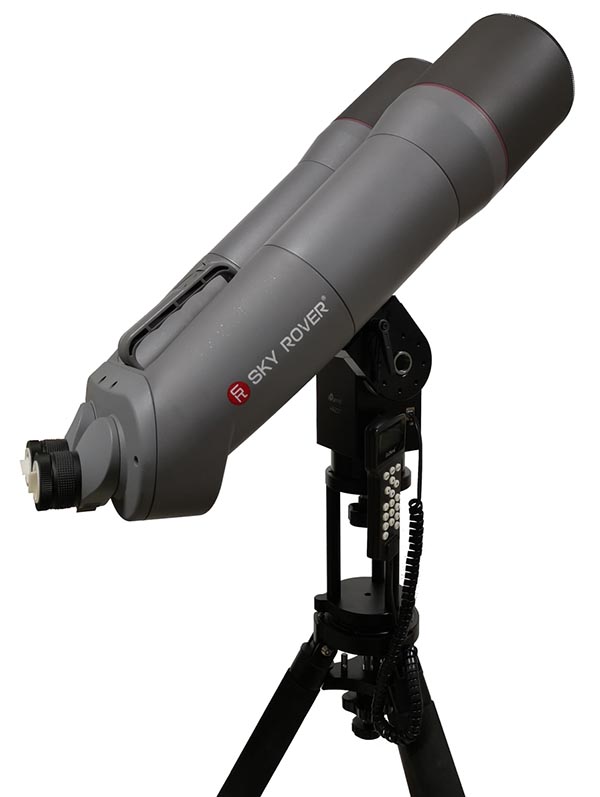

  • Large binocular mounting
  • Satellite tracking ready (with third party software)
  • Built in zero position search and locator
  • Built-in Wi-Fi (via hand controller)
  • USB port for firmware upgrade and computer control
  • Carrying case
  • Two year warranty
Mount Strain Wave Altazimuth Mount
RA gear system Strain Wave Gear
DEC gear system Strain Wave Gear
RA/DEC reduction ratio 480:1
Payload* 31 lbs (14 kg)
Mount weight 8.2 lbs (3.7 kg) with dovetail saddle
Payload/Mount weight 3.78
Drive motor Stepper motor
Structure Material All metal, CNC machined
Exterior finish Anodized black
Level indicator Level bubble
Control system GOTONOVA/Commander
Hand Controller Go2Nova® 8409 with ~212,000 objects database
Tracking Automatic
Maximum slew speed 8º/sec
Power consumption 0.6A(Tracking), 1A(GOTO)
Power DC12V-5A (5.5/2.1mm DC plug)
AC adapter 100V ~ 240V (included, indoor use only)
Power off brake Electronic friction brake
Wi-Fi Built-in
Communication port Yes (Wi-Fi and USB, via HC)
Firmware upgrade Yes
Dovetail saddle Vixen & Losmandy
Tripod Optional
Operation temperature -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
Warranty Two year limited

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
