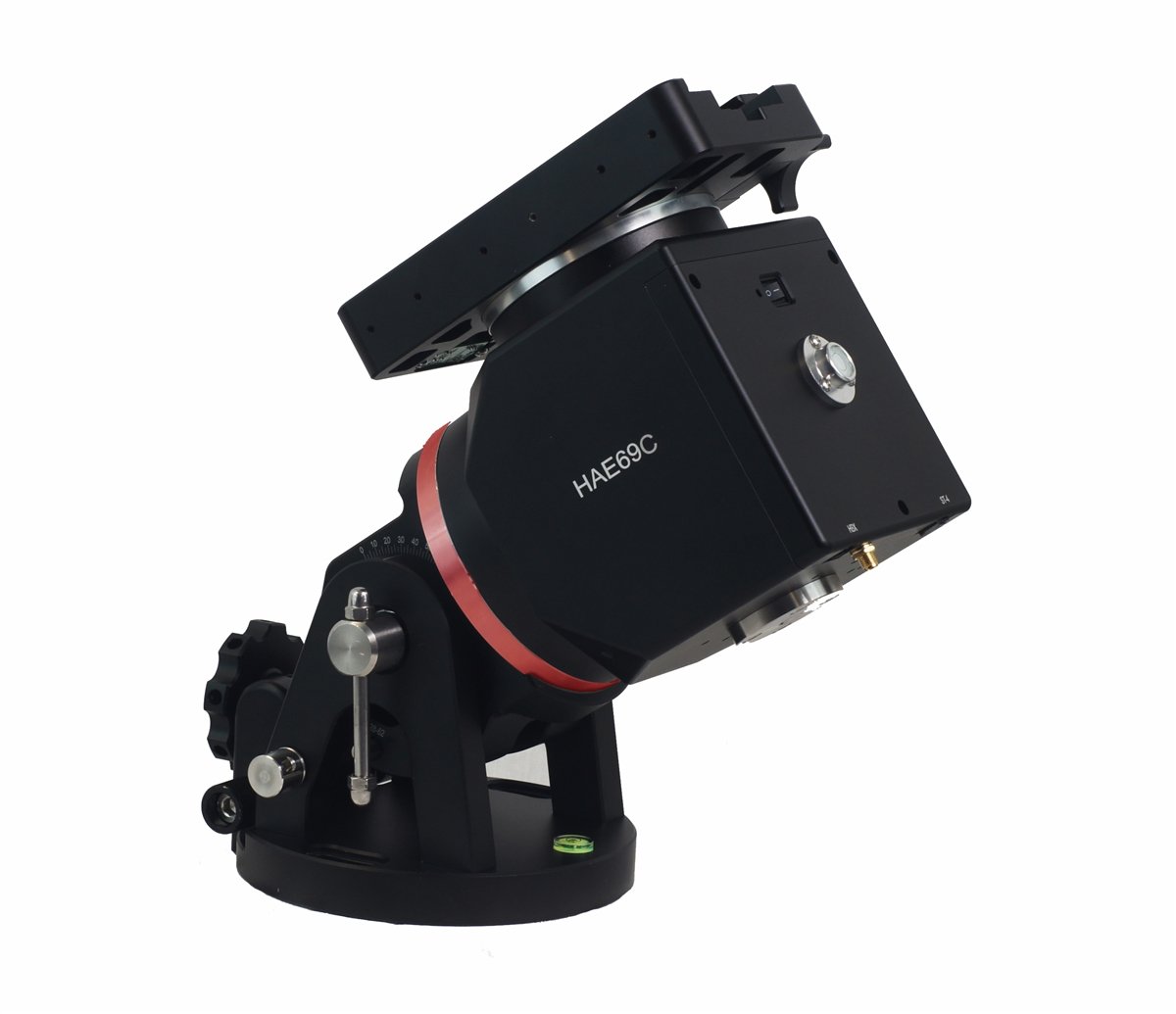

The iOptron HAE69C AZ-EQ dual strain wave gear mount is a heavy-grade harmonic mount that can work in alt-azimuth mode for visual astronomy or equatorial mode for astrophotography. It can carry up to 31kg in payload without a counterweight (36kg with a counterweight) and will deliver an astronomy experience like never before.

Imagine a mount head weighing in at less than 20 lbs with a payload capability 69 lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE69 makes this vision possible.

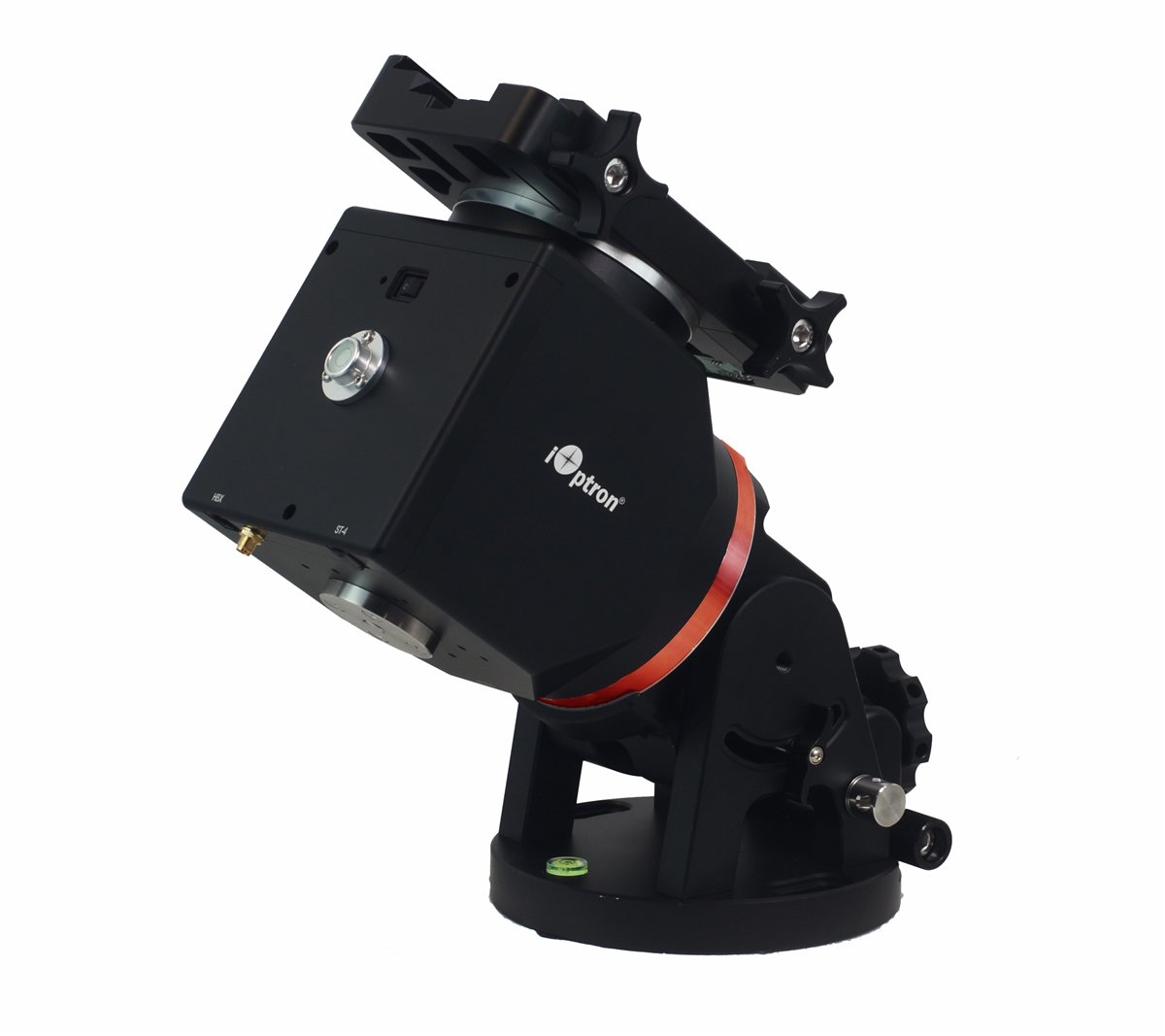

Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE69s deliver unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body is appealing to the eye and is a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction brake allows the mount to stop safely during a planned or unplanned power interruption.

HAE69C dual SWG Alt-az/ Eq mounts now have an internal main board and no longer requires a handset. The mount has USB ports on both the mount base and saddle that connect directly to the main board for mount control and firmware upgrade. It also features a built-in Wi-Fi for connection.

The optional 8411 Go2Nova® handset with OLED will provide a better user experiences, especially at extreme temperatures.

The HAE69C EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

Note: Actual contents may differ from the image. 8411 hand controller and 3339 iPolar are optional.

Features

• Advanced strain wave gear system technology
• Payload capacity of 31 kg (69 lbs) with the mount weight of 8.6 kg (19 lbs, include dovetail saddle)
• PE< ± 15 arcsec
• CNC machined
• Unique friction brake to safely stop movement during a planned or unplanned power interruption
• 270 second gear period
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Integrated ST-4 autoguiding port

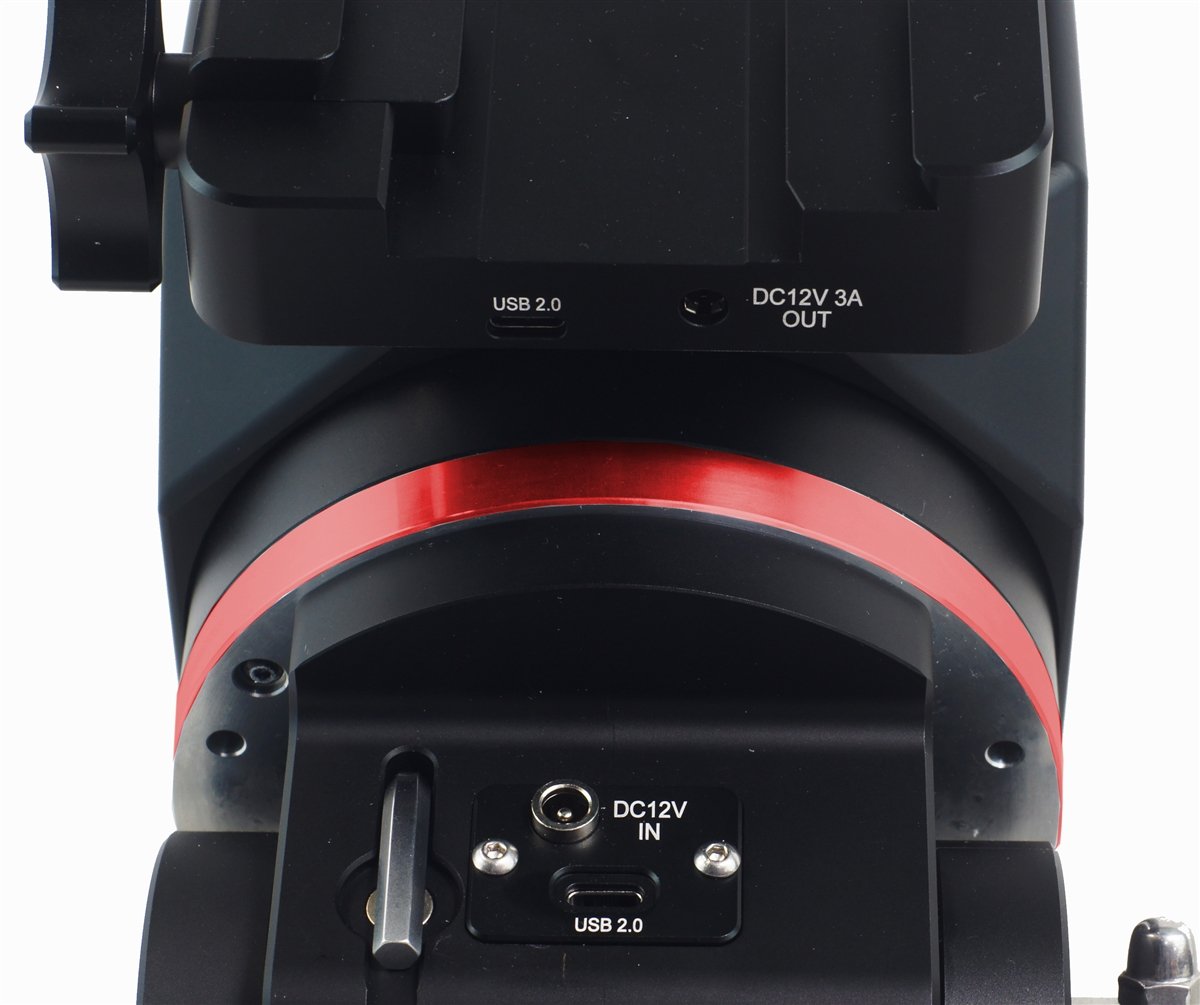

• USB port (on both mount base and dovetail saddle) for firmware upgrade and computer control
• No cable drags
• Built-in Wi-Fi for mount control
• Aluminium carrying case
• Two year warranty

Optional:

• Go2Nova® handset with OLED for better user experiences, especially at extreme temperatures
• iPolar electronic polar scope for easy and accurate polar alignment
