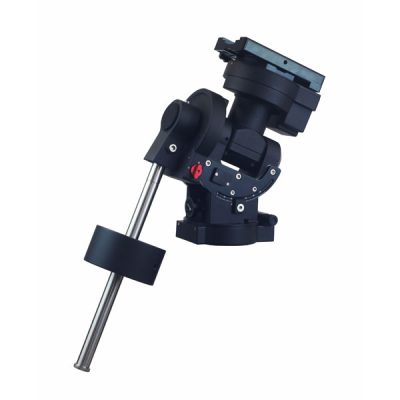

The CEM70 series mounts are new standard bearers for equatorial mounts in the 70lb payload segment. These mounts are packed with many advanced features however the CEM70EC2W also includes a high-resolution optical encoders on the RA and DEC axis.

Retaining the inherent properties of the centre balance design, the CEM70 series compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing and accurate tracking, the CEM70EC2W is a solid performer for observers and imagers alike.

Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves) and advanced cable management system for the mount assure users the CEM70C2W has been designed with their needs in mind.

Features

• A new design, centre-balanced equatorial mount (CEM) for maximum payload with natural stability
• Ideal for both visual observation and astrophotography
• RA axis high resolution optical encoder
• Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
• Easy to use and reliable gear clutches
• Precision altitude and azimuth adjustment.
• Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
• iPolar^TM electronic polar scope
• Go2Nova® 8407+ V2 controller with Advanced GOTONOVA® GOTO Technology with built in heater
• High precision tracking with low periodic error (PE <0.3 arcsec rms)
• realtime periodic error correction (RPEC)
• 32-channel Global Positioning System (GPS)
• USB connection
• Integrated ST-4 autoguiding port
• Advanced cable management system with more choices
• Spring loaded 8″ Vixen/Losmandy dual saddle
• Built-in Wi-Fi connectivity

Optional Tripods

• IOPTRON-8023ACC iOptron LiteRoc 1.75″ Stainless Steel Tripod
• IOPTRON-8034 iOptron Tri-Pier White
• IOPTRON-8034-RC iOptron Tri-Pier with Rolling Case
