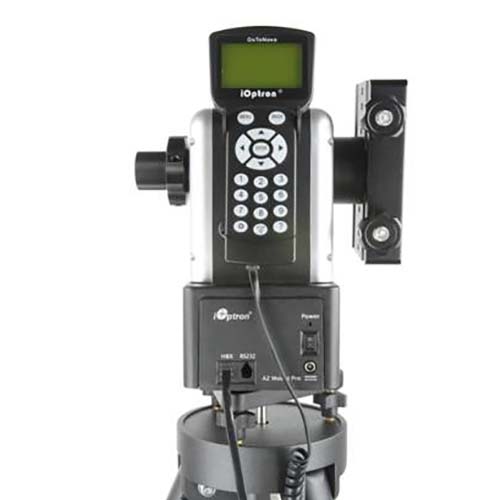

Introducing the AZ Mount Pro featuring “level and go” intuitive GOTO setup

We call it “level and go”, the term used to describe iOptron new AZ Mount Pro’s simple set up routing. Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically the mount slews the instrument to an easily identifiable bright object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.

The new LiteRoc tripod resulting in a lighter tripod with stability similar to the old 2” one. It also has improved leg cuffs and sockets for further rigidity and redesigned leg lock levers securing the extensions position.

AZ Mount Pro and LiteRoc Tripod package includes:

• • • AZ Mount Pro Head (#8920)
    • LiteRoc Tripod (#8923)
    • 10 lbs counterweight (#3006-10)
    • Star knobs with center post (#8340-PIER)

  Features:

  • On board rechargeable lithium ion battery for up to 10 hours of use
  • 33lb primary payload and 10lb secondary payload capacity, with a mount weighing only 13lbs
  • Whisper quiet low-power consumption stepper motors
  • Go2Nova® 8407 hand controller featuring 212K+ object library with an 8 line illuminated LCD screen
  • Zero backlash driver system
  • Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari wireless control
  • Serial port for computer control and firmware upgrades
  • Retractable counter weight shaft
  • Position memorization at power interruption
  • Die-cast aluminum body
  • 3-Point easy level adjustment on tripod
  • 6 inch dual dovetail saddle (Losmandy/Vixen styles)
  • Stands a mere 10 inches tall (mount head only)
  • Built-in 32-channel GPS receiver
  • Automatic position and angular detection sensors
  • Aluminum Hard Case
  • 1X 10lb counterweight included
  • 100 ~ 240V Battery Charger included
  • LiteRoc 1.75 inch heavy duty stainless steel tripod included
  • Two year limited warranty ( 90 day for battery)

  Optional Accessories

  • AZ Mount Pro Altitude Lock Levers (#8954)
  • Secondary Dovetail Saddle for AZ Mount Pro (#8953)
