The ZWO ASI676MC is designed as an all-sky camera, and features a square 1/1.6″ sensor to allow you to maximise your sky view. It has a resolution of 3552×3552 pixels, making the camera 12MP. It is suited to full sky surveillance, including recording meteors and other transient phenomena.

It is also highly suitable for lunar, planetary and solar imaging, with 2.0µm pixels giving high resolution. The sensor will contain a full disk image of the Sun or Moon with focal length of 650mm or less.

The camera is fitted with a Sony STARVIS-2 IMX676 sensor, which has zero amp glow, low readout noise and dark current, as well as good sensitivity in the near-infrared. It also has 256MB of DDR3 memory, preventing partial frames, and a USB3 connection for high frame rates.

ASI676 specs

Sensor 1/1.6″ CMOS Sony-IMX676
Resolution 12.6 Megapixels, 3552 x 3552
Pixel size 2.0 µm
Sensor size 7.1 x 7.1 mm, 10.04 mm diagonal
Bayer pattern TBD
Quantum efficiency 83%
Exposure range 32 µs – 2000 s
Read noise 0.56 e- (in high gain conversion mode)
Full well capacity 10,550 e-
Bit rate 12 bit
Speed 31.2 fps at full resolution
Shutter type Rolling shutter
ROI Supported
Compatibility Mac, Windows, Linux
Protecting window IR-cut
Ports USB 3.0 Type-B, ST4
Back focus 12.5 mm
Connections 2″ / 1.25″ / M42 x 0.75
Dimensions Ø 62 mm; ↨ 37.1 mm
Weight 126 g

ASI676 contents

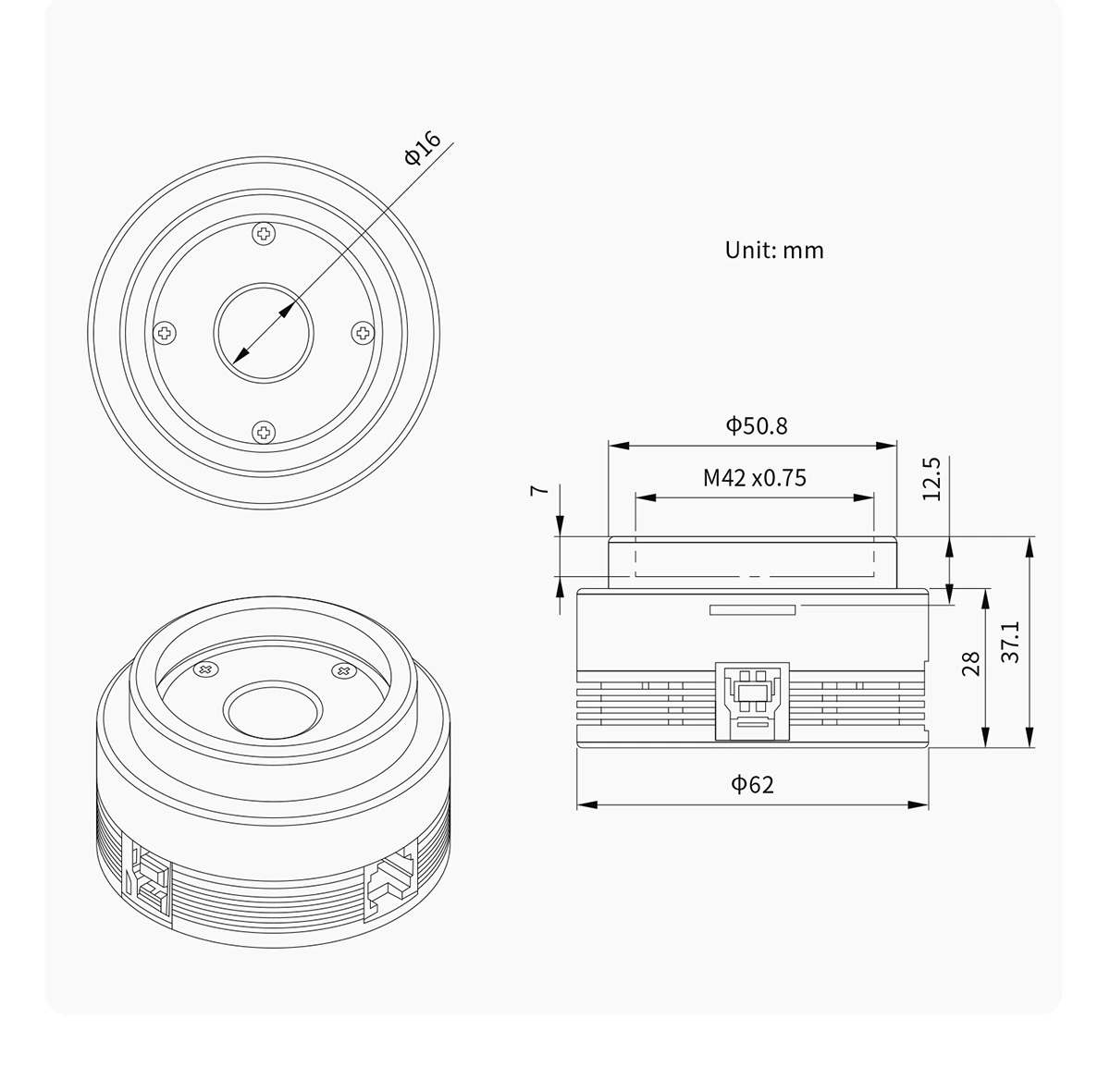

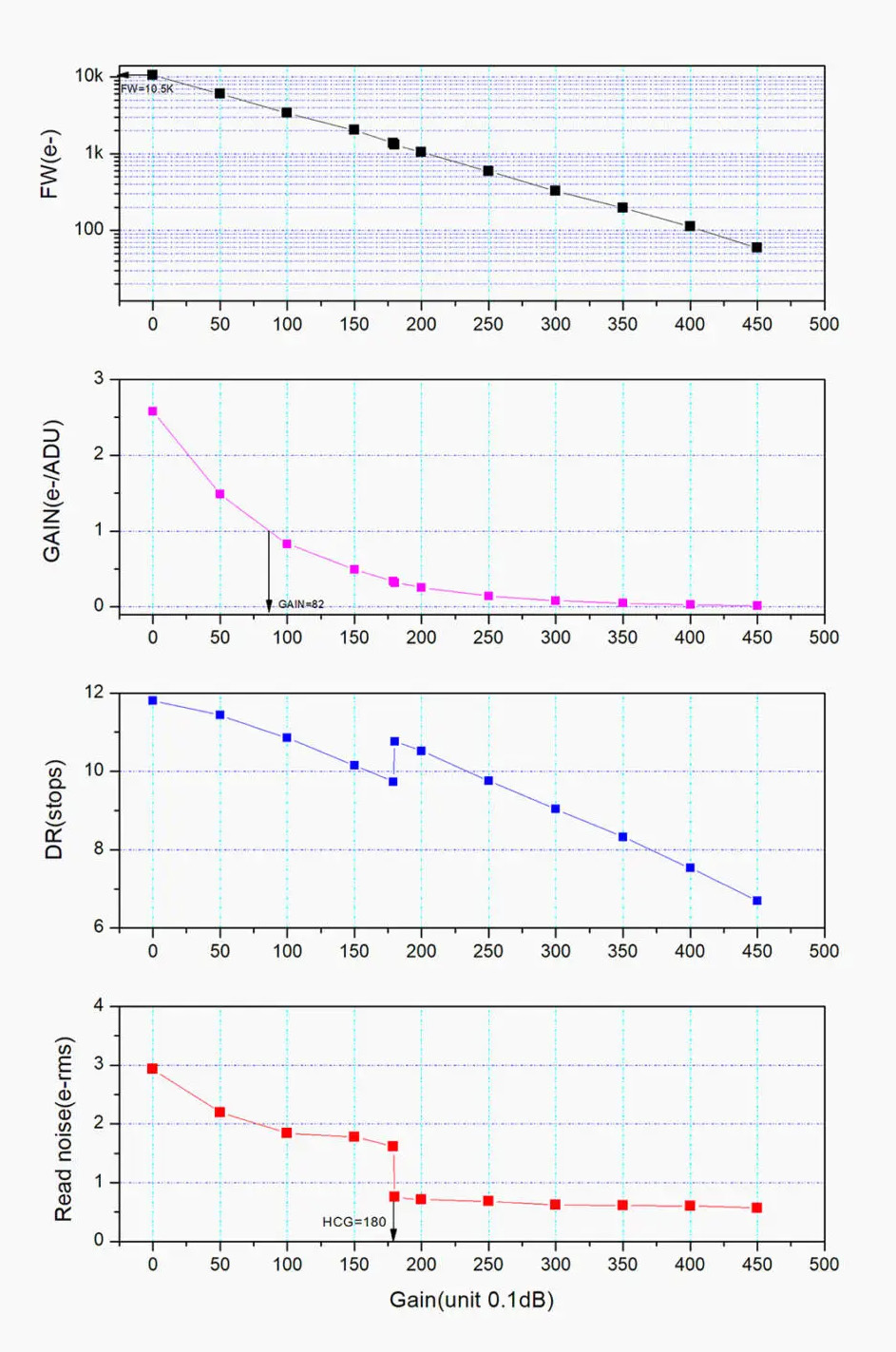

ASI676 DrawingASI676 graphs

ZWO ASI676MC All-Sky Camera

SKU: ZWO-ASI676MC

$619.00

Available on back-order

✅ Fast Shipping & Tracking
✅ Stocked in Melbourne, Australia
✅ Expert Advice
✅ Lifetime Technical Support

    Need Expert Advice?

    Visual Astronomy, Astrophotography, Microscopy and Macro Photography can be a little complicated sometimes as there are a lot of options. If you'd like to check something before you purchase just let us know and we'd be happy to help!

    Enquire now or call us (03) 9042 2293

    ZWO ASI676MC All-Sky Camera

    SKU: ZWO-ASI676MC

    $619.00

    Available on back-order

    The ZWO ASI676MC is designed as an all-sky camera, and features a square 1/1.6″ sensor to allow you to maximise your sky view. It has a resolution of 3552×3552 pixels, making the camera 12MP. It is suited to full sky surveillance, including recording meteors and other transient phenomena.

    It is also highly suitable for lunar, planetary and solar imaging, with 2.0µm pixels giving high resolution. The sensor will contain a full disk image of the Sun or Moon with focal length of 650mm or less.

    The camera is fitted with a Sony STARVIS-2 IMX676 sensor, which has zero amp glow, low readout noise and dark current, as well as good sensitivity in the near-infrared. It also has 256MB of DDR3 memory, preventing partial frames, and a USB3 connection for high frame rates.

    ASI676 specs

    Sensor 1/1.6″ CMOS Sony-IMX676
    Resolution 12.6 Megapixels, 3552 x 3552
    Pixel size 2.0 µm
    Sensor size 7.1 x 7.1 mm, 10.04 mm diagonal
    Bayer pattern TBD
    Quantum efficiency 83%
    Exposure range 32 µs – 2000 s
    Read noise 0.56 e- (in high gain conversion mode)
    Full well capacity 10,550 e-
    Bit rate 12 bit
    Speed 31.2 fps at full resolution
    Shutter type Rolling shutter
    ROI Supported
    Compatibility Mac, Windows, Linux
    Protecting window IR-cut
    Ports USB 3.0 Type-B, ST4
    Back focus 12.5 mm
    Connections 2″ / 1.25″ / M42 x 0.75
    Dimensions Ø 62 mm; ↨ 37.1 mm
    Weight 126 g

    ASI676 contents

    ASI676 DrawingASI676 graphs
