Camera technical details

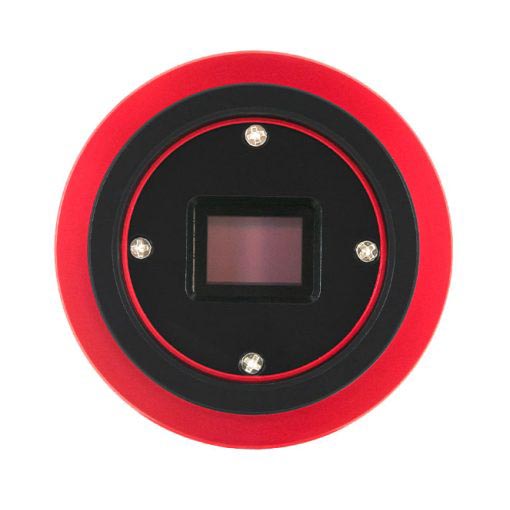

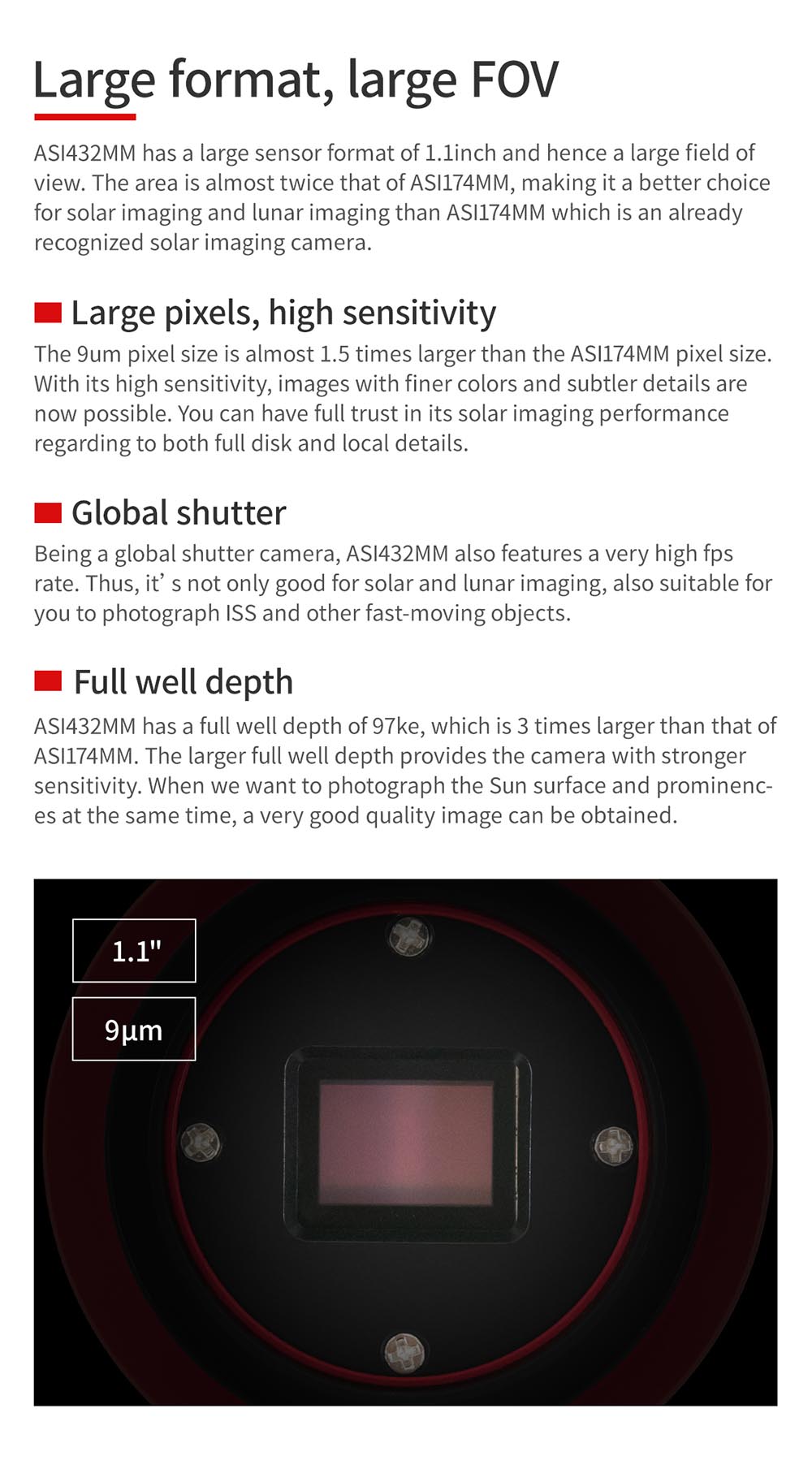

Sensor: 1.1″ CMOS Sony-IMX432LLJ-C
QE peak：79%
Back focus length: 6.5mm/17.5mm
Max fps: 120fps
Full well: 97Ke
Shutter: global shutter
Resolution: 1.77Mega Pixel,1608*1104
Pixel Size: 9µm
Exposure Range: 32μs~2000s

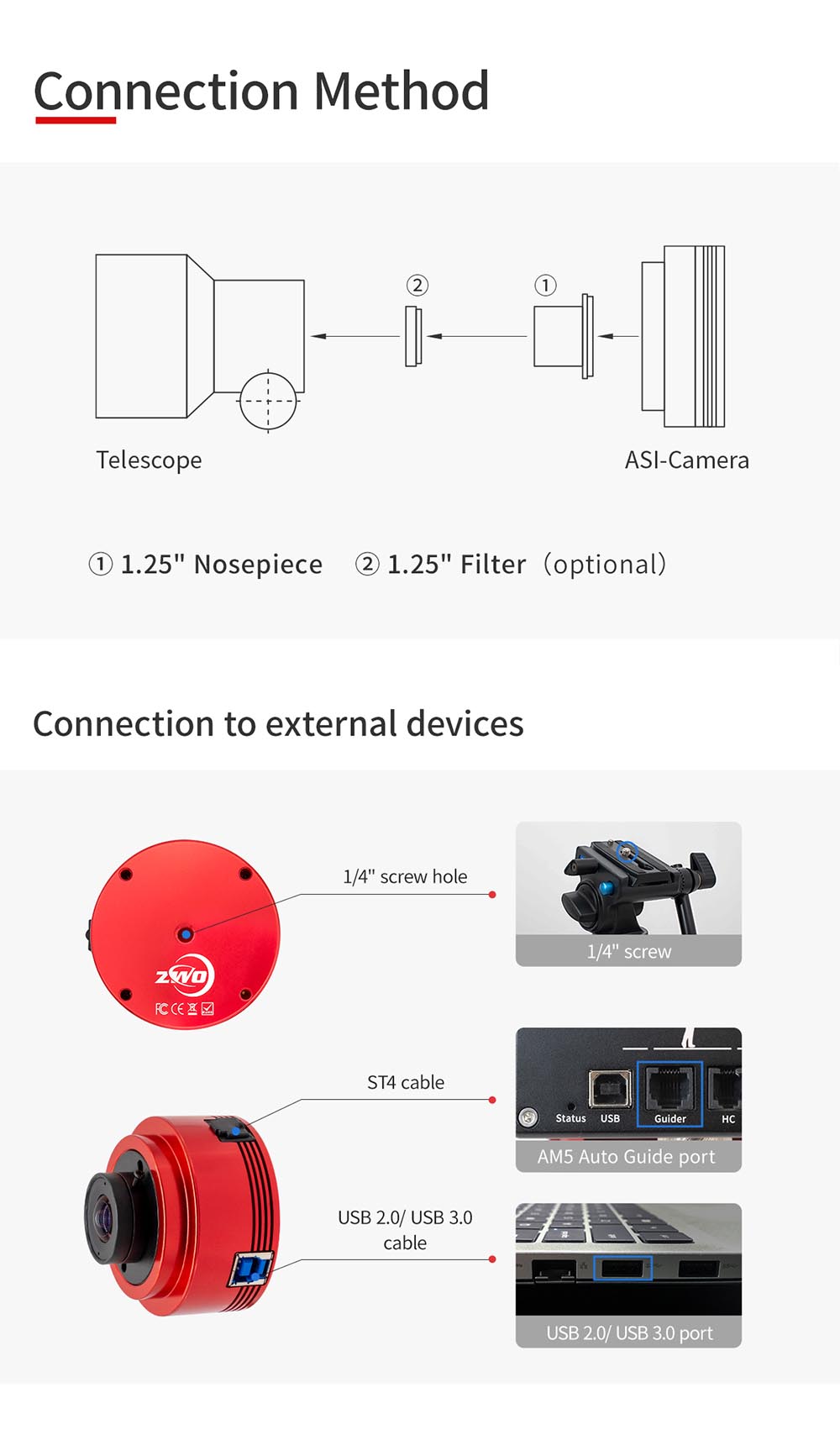

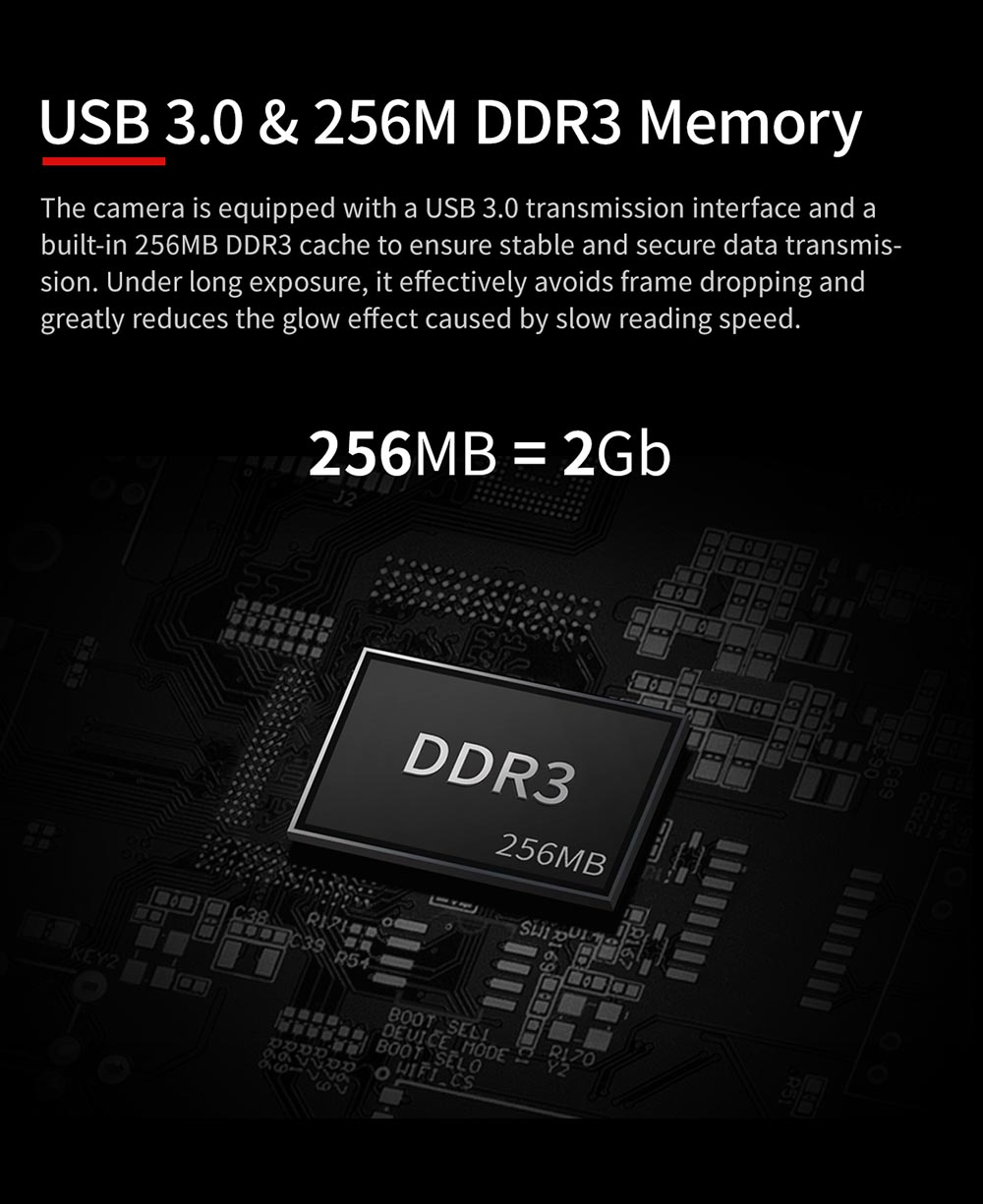

Interface: USB 3.0 Type-B
Protect window: φ32-2 AR
ADC: 12bit

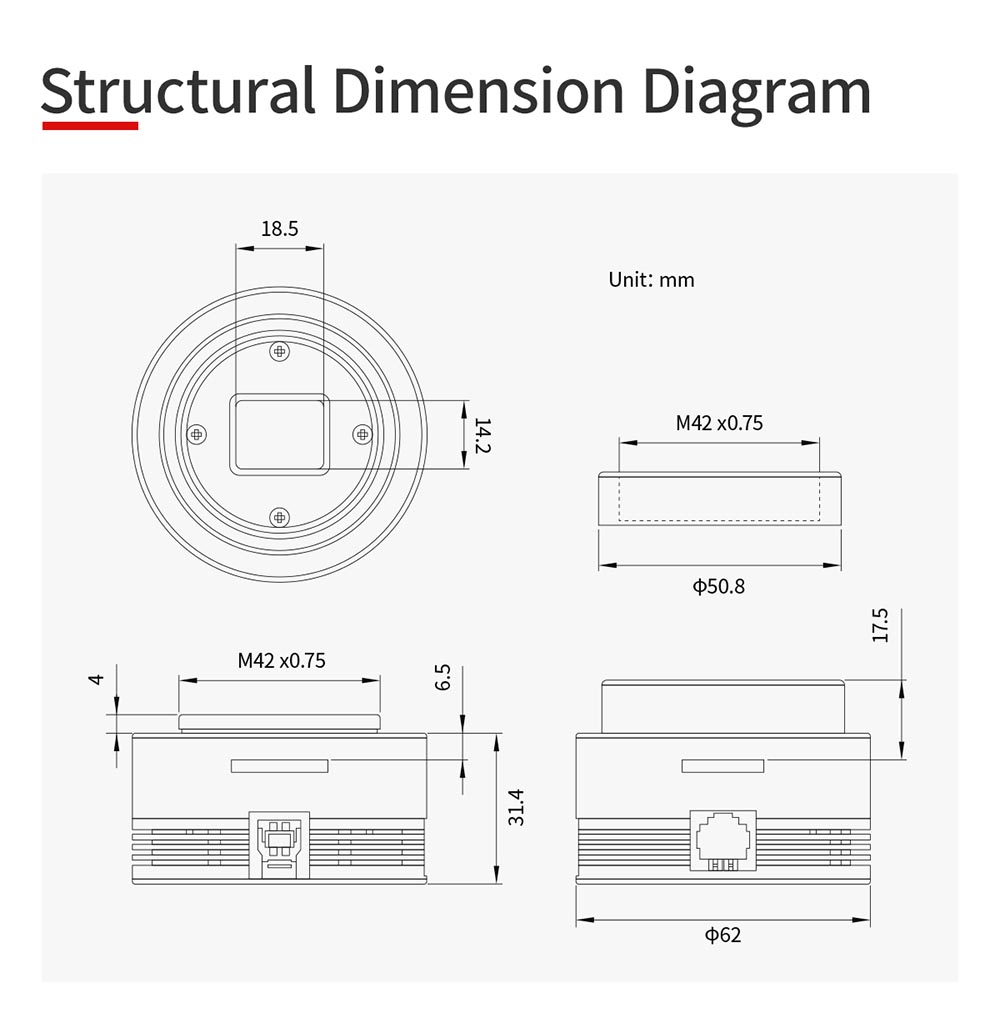

Dimension: 14.5*9.95mm
Weight: 126g
Working Temperature: -5℃~50℃
Storage Temperature: -10℃~60℃
Working Relative Humidity: 0-80%
Supported OS: Windows, Linux & Mac OSX

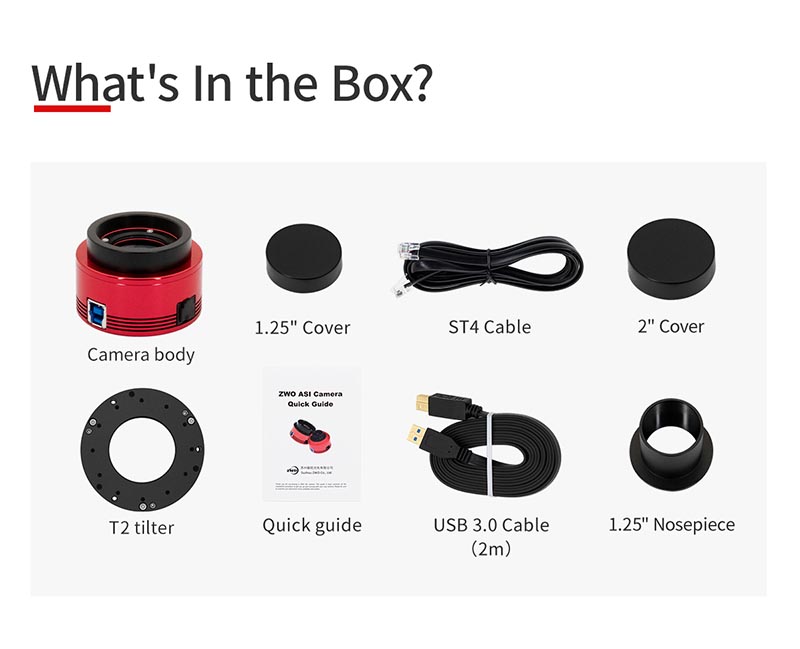

T2 Tilter is included in the package but due to its large size it will be packed separately in another box, not in the camera box.
The ZWO website is always updated with the most recent camera drivers as well as software for DSO and planetary imaging. Please make sure the most recent driver and software has been installed before you start shooting:
It is also recommended to read the Manuals first before shooting.
Be the first to review “ZWO ASI432MM Monochrome Camera” Cancel reply

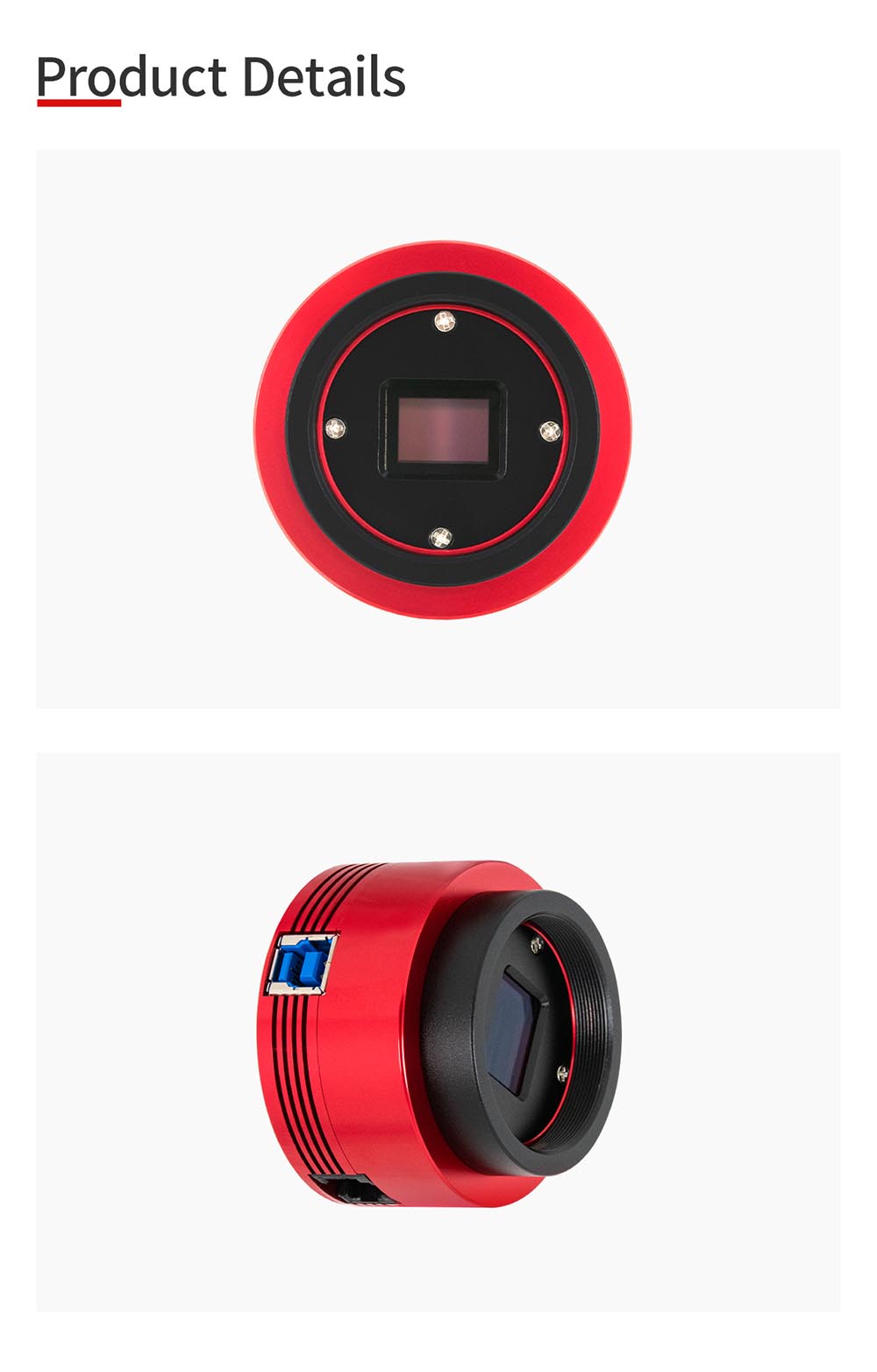

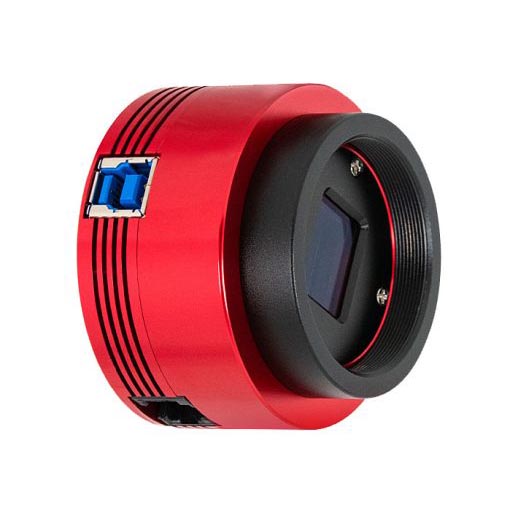

ZWO ASI432MM Monochrome Camera
SKU: ZWO-ASI432MM
$999.00
Available on back-order
✅ Fast Shipping & Tracking
✅ Stocked in Melbourne, Australia
✅ Expert Advice
✅ Lifetime Technical Support
ZWO ASI432MM Monochrome Camera
SKU: ZWO-ASI432MM
$999.00
Available on back-order
Camera technical details
Sensor: 1.1″ CMOS Sony-IMX432LLJ-C
QE peak：79%
Back focus length: 6.5mm/17.5mm
Max fps: 120fps
Full well: 97Ke
Shutter: global shutter
Resolution: 1.77Mega Pixel,1608*1104
Pixel Size: 9µm
Exposure Range: 32μs~2000s
Interface: USB 3.0 Type-B
Protect window: φ32-2 AR
ADC: 12bit
Dimension: 14.5*9.95mm
Weight: 126g
Working Temperature: -5℃~50℃
Storage Temperature: -10℃~60℃
Working Relative Humidity: 0-80%
Supported OS: Windows, Linux & Mac OSX
T2 Tilter is included in the package but due to its large size it will be packed separately in another box, not in the camera box.
The ZWO website is always updated with the most recent camera drivers as well as software for DSO and planetary imaging. Please make sure the most recent driver and software has been installed before you start shooting:
It is also recommended to read the Manuals first before shooting.
