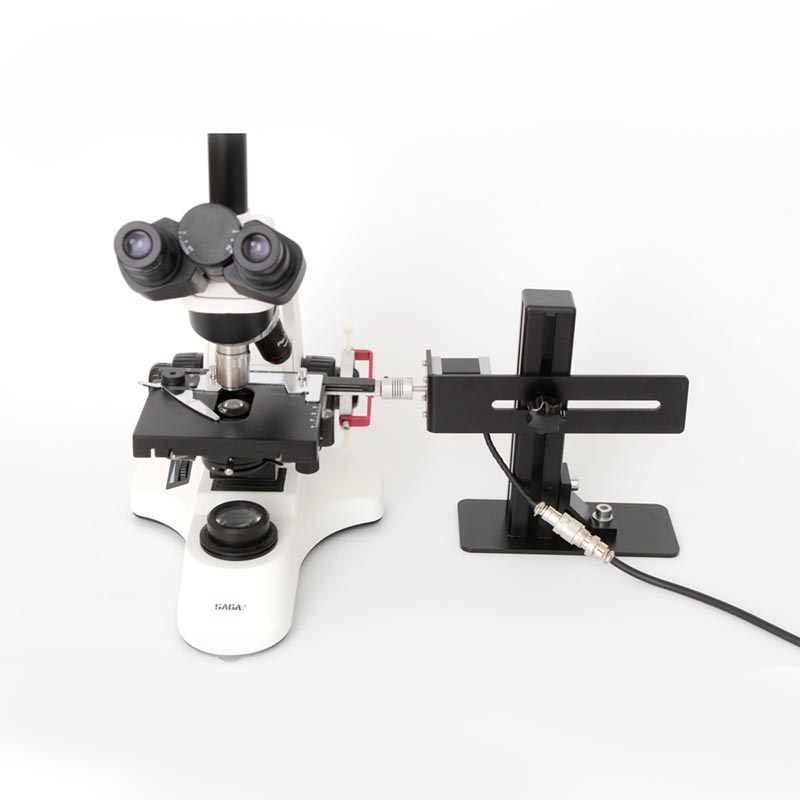

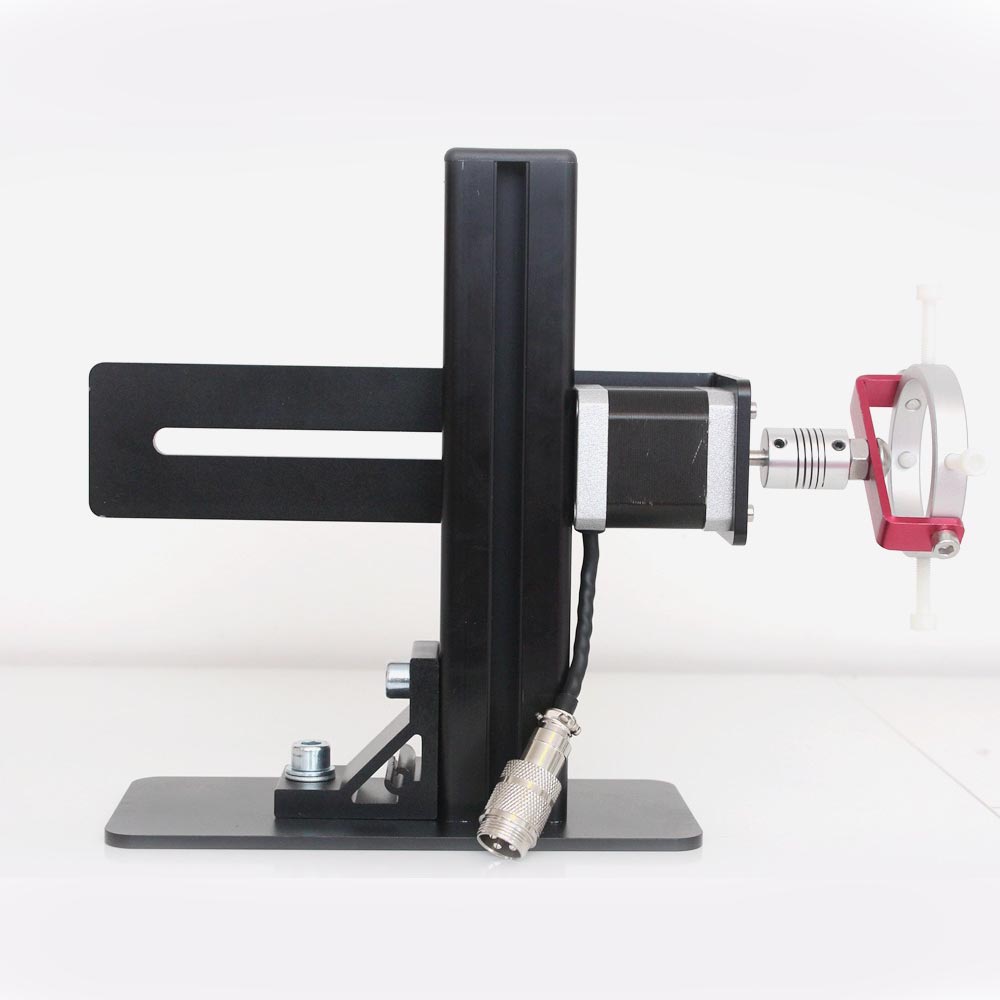

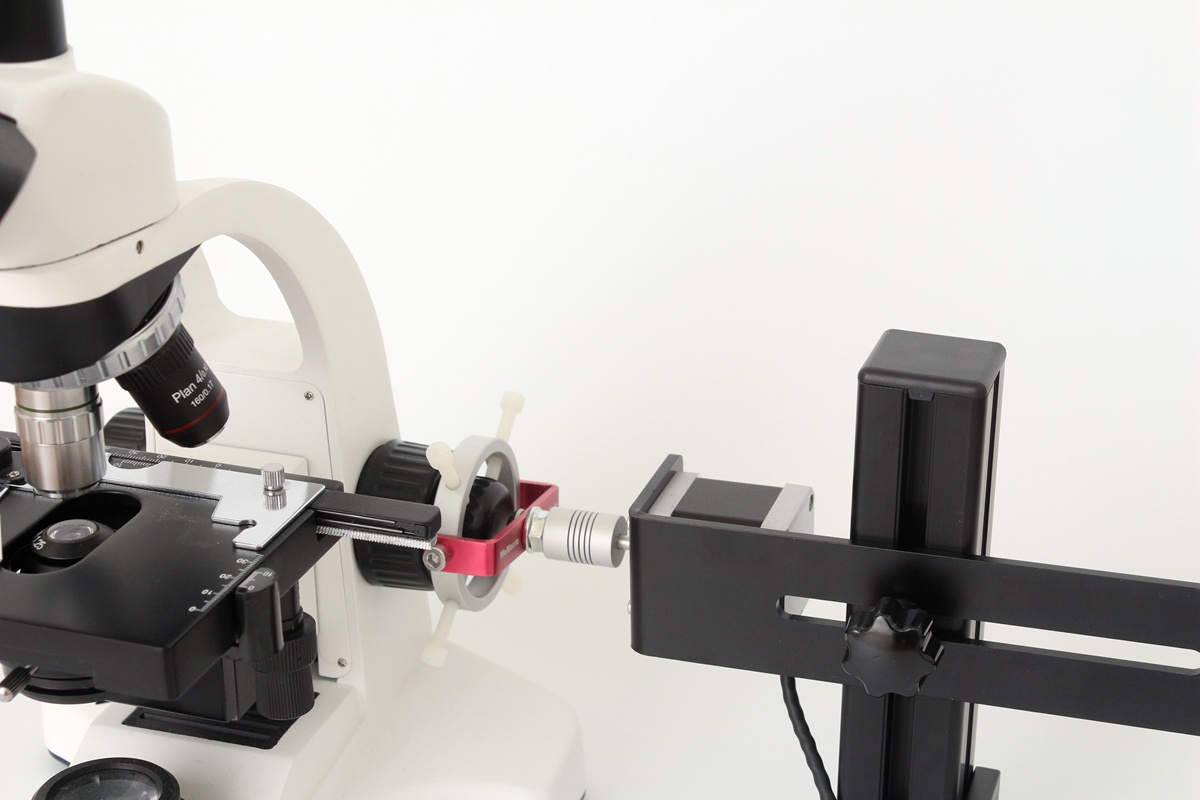

MicroMate is specially designed for microscope focus stacking. The motor on MicroMate is a 400 step 0.9 degree stepper.

The height of motor can be adjusted from 2cm-18cm (It depends on the fine adjustment knob height). The knob’s diameter should smaller than 5 cm.

When the step length set as 1 micron in software, it will take 2132 steps make a full circle.

If the fine adjust focus of microscope rotate one circle as 500 micron. The minimum step is 500/2132 ≈0.23 micron as a step. If the step length set as 5 micron the real step is 500/400 =1.25 micron as a step.

If the fine adjust focus of microscope rotate one circle as 200 micron. The minimum step is 200/2132 ≈0.09 micron as a step.

The WM-MMC001 package Contains:

• MicroMate  bracket
• Control box(bluetooth build-in)
• Power supply (12V2A,Please select your country’s type)
• USB cable (about 1.5m)
• Stepper motor cable (about 1m)
• Shutter extension cable (about 1.5m)
• Reverse motor cable (It’s better to let objective lens leave the sample in stacking)

Optional Shutter Release Cables are also available.

• Please add a Shutter Release Cable to the shopping cart.
