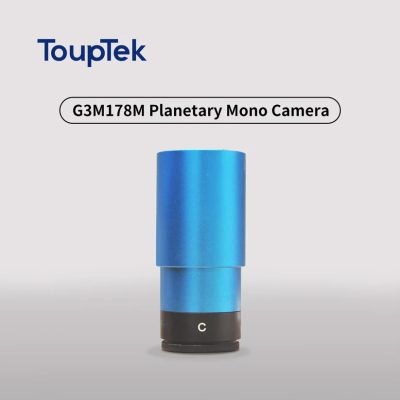

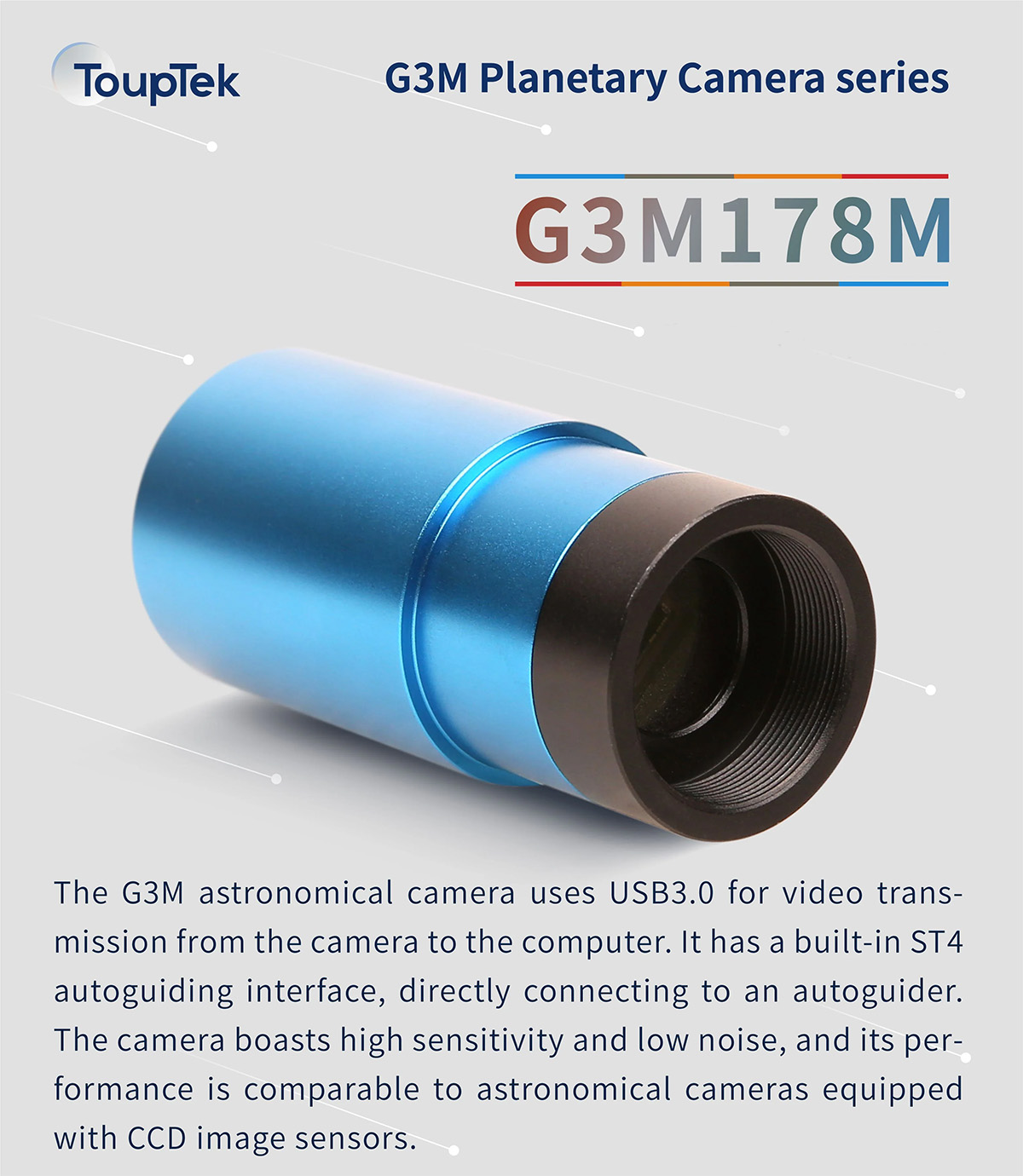

The ToupTek G3M178M is a passively cooled 1.25″ form monochrome solar or planetary camera incorporating the 6.3 megapixel Sony IMX178 CMOS sensor. The camera communicates via USB3 for high frame rates and has 14 bit ADR and is therefore especially suited to video-based solar astrophotography.

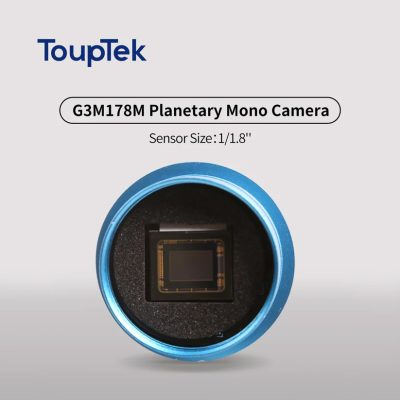

The IMX178 sensor in the G3M178M is a 1/1.8″ (7.4 x 5.0mm) sensor with 2.4µm pixels. This camera is especially suited for solar photography, and if your solar telescope has a focal length of  350-400mm (e.g. Lunt 40mm, Lunt 50mm and Coronado PST), this will result in the full disk of the sun being covered by the sensor.

The camera communicates with the computer using a USB3.0 cable (included with the camera), and can achieve up to 60 frames per second. The camera has a native driver, and an ASCOM driver is also included. This means that all popular image acquisition software may be used with the camera. In addition to this, the camera comes with the advanced video and image processing application ToupSky.

Because the G3M178M also works well as an autoguiding camera, an ST-4 port and cable are provided, which allows ST-4 guiding.

G3M178M

Sensor details

Sensor dimensions



Response curve

Specifications of the ToupTek G3M178M

ToupTek part number G3M178M
Sensor name Sony IMX178
Size class 1/1.8″
Size (mm) 7.4 x 5.0
Full resolution (px) 3096 x 2080
Diagonal (mm) 8.9
Megapixels 6.3
C/M monochrome
Pixel size (µm) 2.4
Download speed (FPS) 60
Quantum efficiency >81%
Full well 10.7 ke-
Read noise 2.2 – 1.4 e-
Max SNR 40 dB
ADC 14 bit

Contents:

  • camera (1.25″ diameter)
  • 1.25″ extender
  • USB3 A-B cable
  • ST-4 autoguiding cable



Contents

Reviews

There are no reviews yet.

Be the first to review “ToupTek G3M178M Mono Planetary Camera”

Your email address will not be published. Required fields are marked *

ToupTek G3M178M Mono Planetary Camera

SKU: TT-G3M178M

$439.00

Available on back-order

✅ Fast Shipping & Tracking
✅ Stocked in Melbourne, Australia
✅ Expert Advice
✅ Lifetime Technical Support

    Need Expert Advice?

    Visual Astronomy, Astrophotography, Microscopy and Macro Photography can be a little complicated sometimes as there are a lot of options. If you'd like to check something before you purchase just let us know and we'd be happy to help!

    Enquire now or call us (03) 9042 2293
