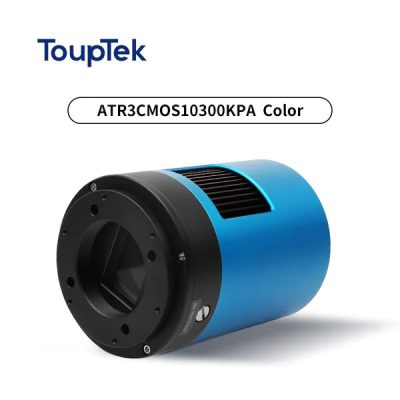

The ToupTek ATR3CMOS10300KPA (known by us as an ATR294C) incorporates the 10.3 megapixel Sony IMX294 CMOS sensor. This is a colour camera which is designed for long exposure deep-sky astrophotography.

The sensor in the ATR294C is a four thirds size (19.1 x 13.0mm) sensor with 4.63µm pixels. If you have a telescope with a focal length of 1000mm, your field of view will be 1.10° x 0.75°, at a resolution of 0.95 arcseconds per pixel.

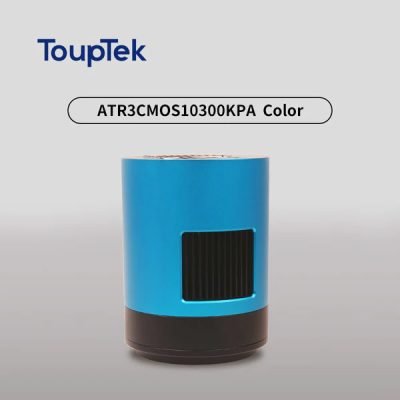

The ATR294C has a two-stage fan-forced Peltier cooling system which is capable of cooling the sensor up to 42°C below the ambient air temperature. This decreases image noise, especially over long exposures, and will therefore greatly increase the signal to noise ratio. This lower noise gives you a better image overall, because you can retrieve dark details of nebulas and galaxies in the darker areas. The designers of the camera have ensured that that heat transfers quickly away from the sensor.

The camera communicates with the computer using a USB3.0 cable (included with the camera). It has a native driver, but an ASCOM driver is also included. This means that normal image acquisition software (like NINA, Voyager, Sequence Generator Pro, etc.) can be used with the camera. In addition to this, the camera comes with an advanced video and image processing application ToupSky.

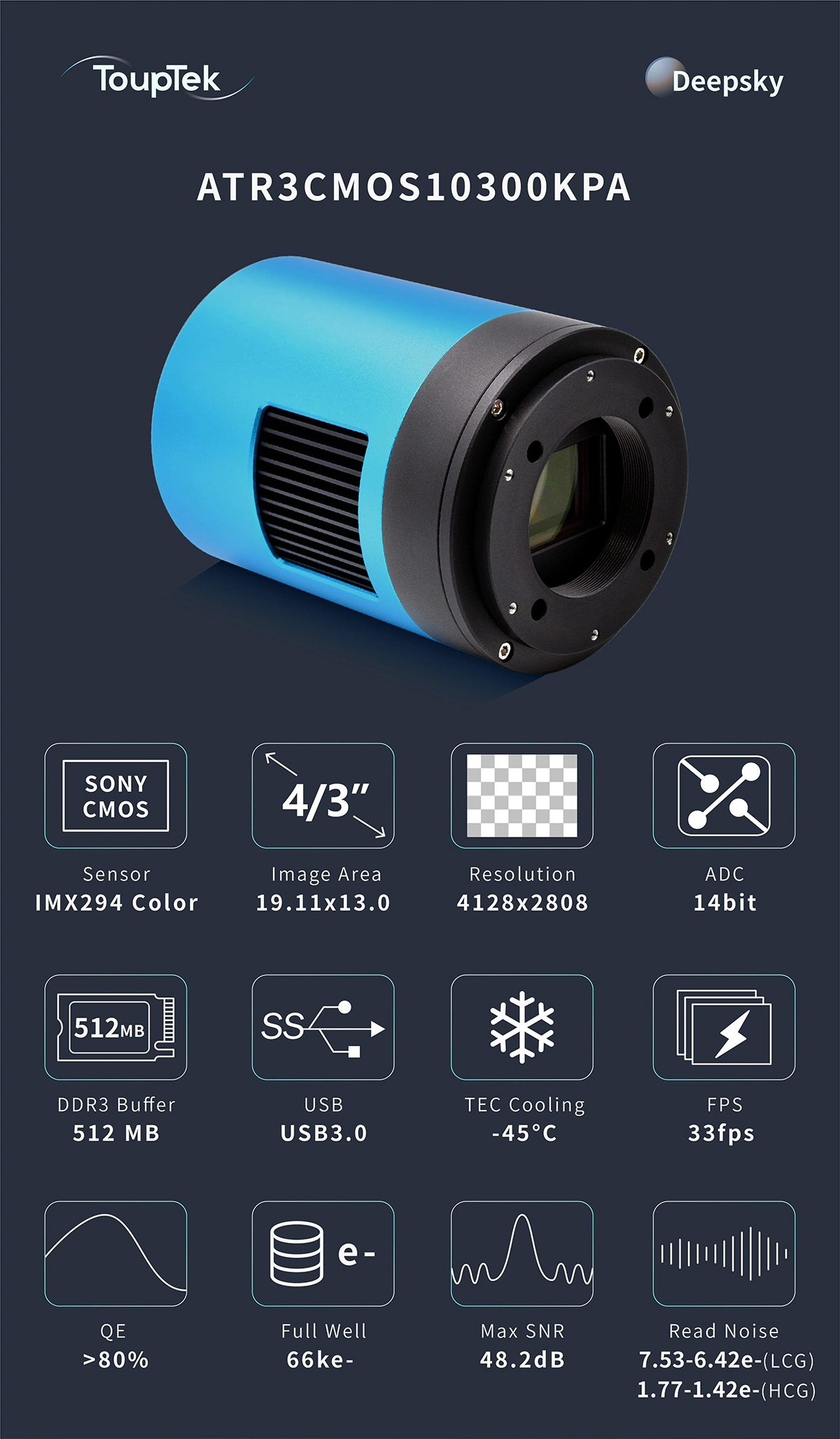

Camera overview

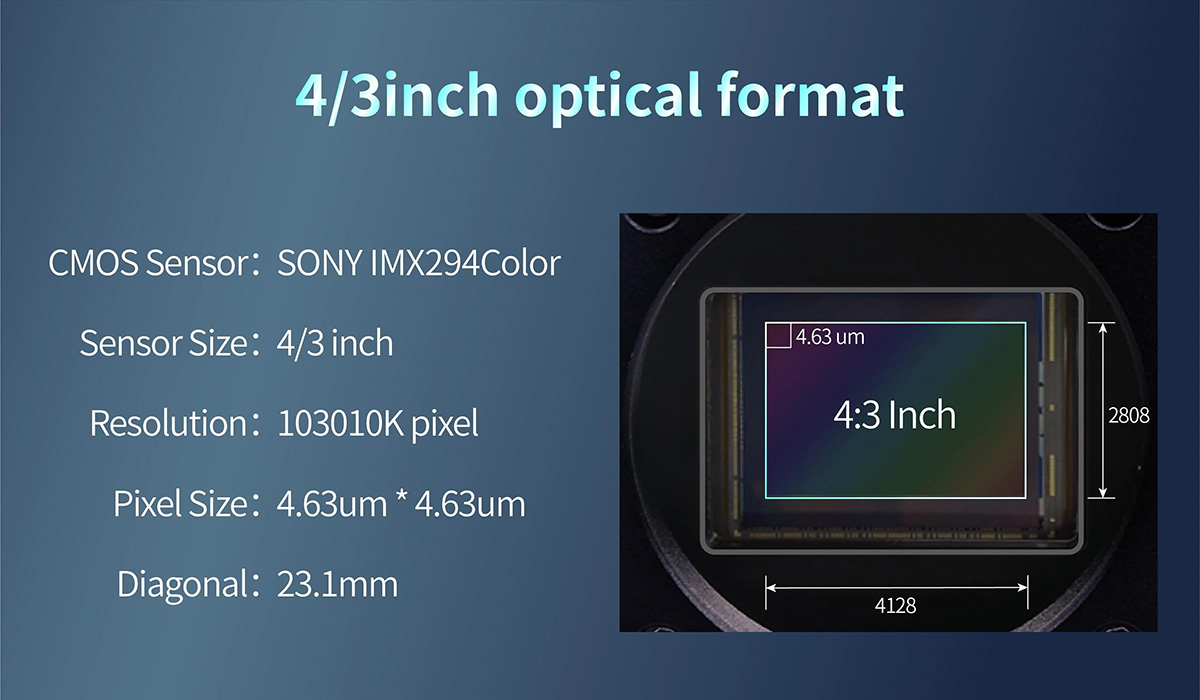

Sensor detailsDDR3 bufferDew heaterAdditional information





Specifications of the ToupTek ATR294C

ToupTek part number ATR3CMOS10300KPA
Short name ATR294C
Name Sony IMX294
Size class 4/3″
Size (mm) 19.1 x 13.0
Full resolution (px) 4096 x 2160
Diagonal (mm) 23.1
Megapixels 10.3
C/M colour
Pixel size (µm) 4.63
DDR3 buffer 512 MB
Download speed (FPS) 33
Quantum efficiency >80%
Full well 66 ke-
Max SNR 48.2 dB
Cooling ability 42°C below ambient
Read noise 7.53 – 6.42 e- (LCG); 1.77 – 1.42 e- (HCG)
ADC 14 bit

Contents:

  • camera (with M42 male adapter attached)
  • power supply
  • USB3 A-B cable
  • rubber sensor cover
  • M42 female adapter for front of camera
  • 16.5mm extender (replaces OAG)
  • 21 mm extender (replaces filter wheel)
  • 48mm to 42mm stepdown ring
  • heavy duty carry case
  • software on USB drive

What's in the box

Connection methods

Reviews
