QHY5III462C Planetary Camera with High Near Infrared Response

High QE 800-1000nm and Monochrome at NIR

The QHY5III462C uses Sony’s latest generation IMX462 back-illuminated sensor with extended red and near infrared response. It has nearly double the red and NIR sensitivity as previous generation BSI sensors and even greater sensitivity compared to front illuminated sensors. Because the RGB filters become transparent at NIR wavelengths, the camera captures RGB color images in visible light and monochrome images in NIR.

Low Light Sensitivity and 0.5e- Read Noise

Sony’s new sHCG (Super High Conversion Gain) technology produces a higher voltage from fewer photons resulting in greater sensitivity even at very low levels of light. With sHCG technology, even in visible light, the QHY5III462C has higher sensitivity than the back-illuminated IMX290 based cameras.

High Frame Rate 135FPS

To produce the highest detail with the greatest dynamic range, many planetary imagers prefer to capture hundreds or thousands of images in as short a time as possible and then process the results into one final combined image. This requires high sensitivity for short exposures and low read noise for combining multiple images. The QHY5III462C will output 135 frames per second at full resolution. With its exceptionally high QE and extraordinarily low (0.5e-) read noise, it is the perfect camera for planetary imaging.

Supplied with Filters for Visible and IR Imaging

IR850 Pass Filter for NIR, UV-IR Filter for Color

The QHY5III462C comes with two free 1.25-inch filters. The IR850 filter is a long wavelength pass filter that allows wavelengths > 850nm to pass through. The UV/IR filter passes visible light and blocks the NIR. With these two filters you can capture both RGB color images and NIR monochrome images with the same camera. At NIR wavelengths, the RGB filters become transparent and the camera behaves like a monochrome IR camera.

Model QHY5III462C
Image Sensor SONY IMX462
Mono/Colour Colour
FSI/BSI BSI
Sensor Size Typical 1/2.8 inch
Pixel Size 2.9um*2.9um
Effective Pixel Area 1920*1080
Effective Pixels 2 Megapixels
Full Well Capacity 12ke-
Read Noise 0.5e-
A/D 12-bit (output as 16-bit and 8-bit)
Built-in Image Buffer –
Full Frame Rates 135 FPS@8-bits
ROI Frame Rates TBA
Exposure Time Range 7us-900sec
Shutter Type Electronic Rolling Shutter
Computer Interface USB3.0 Type-B
Guide Port Custom ST-4
Telescope Interface 1.25-inch, C-Mount
Optical Window AR Anti-reflection Glass
Extra Filter IR850nm Filter Included
IR-Cut Filter Included
Back Focal Length 12mm
Weight 88g

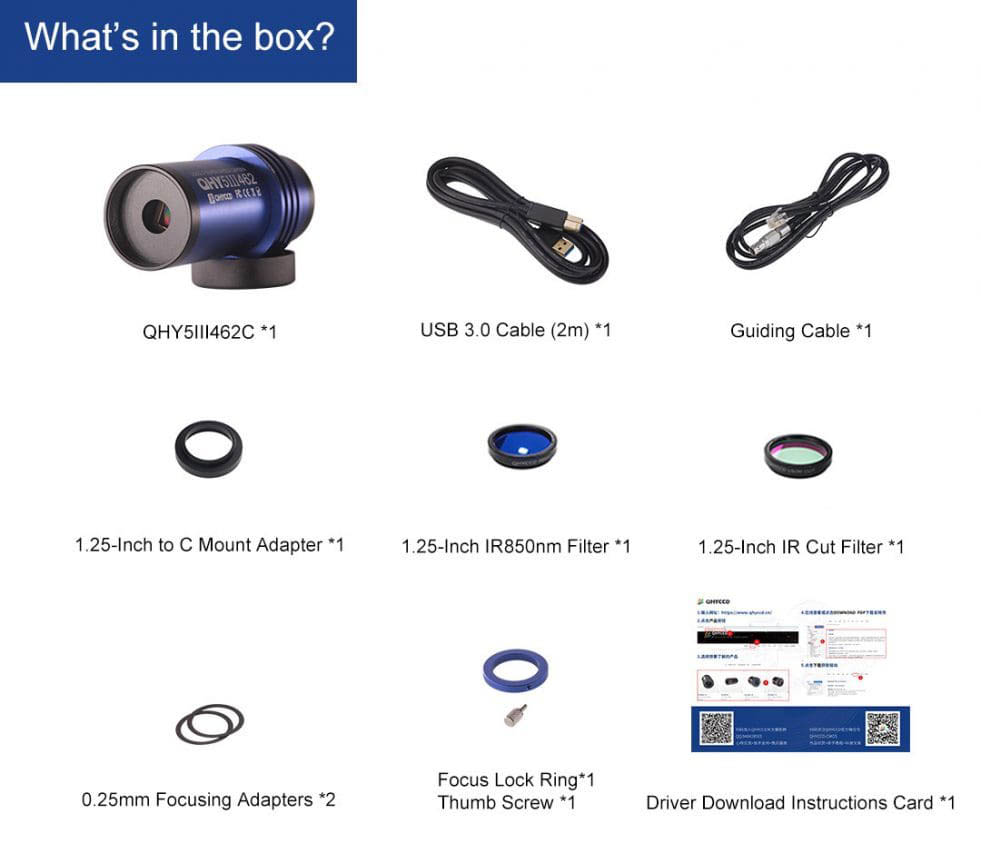

QHY5III462C Package Contents
