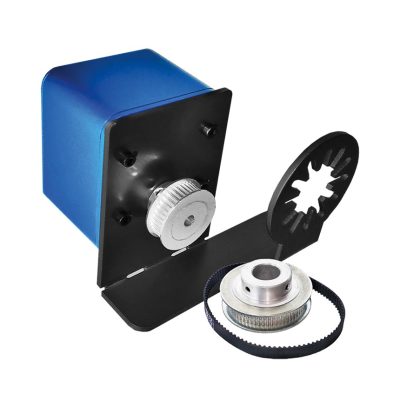

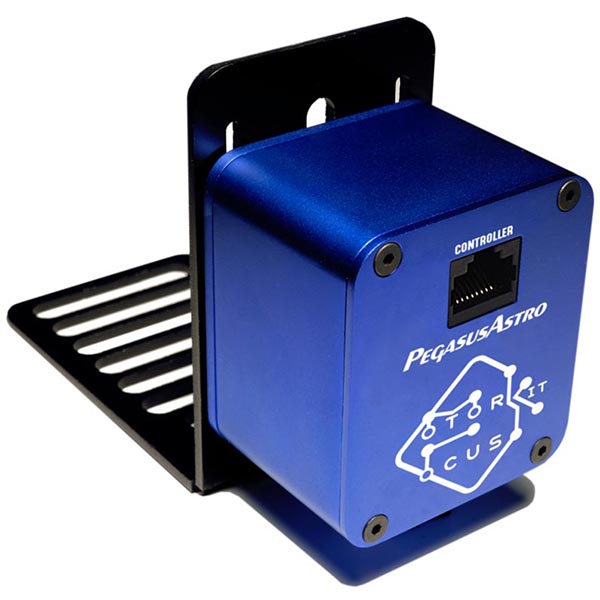

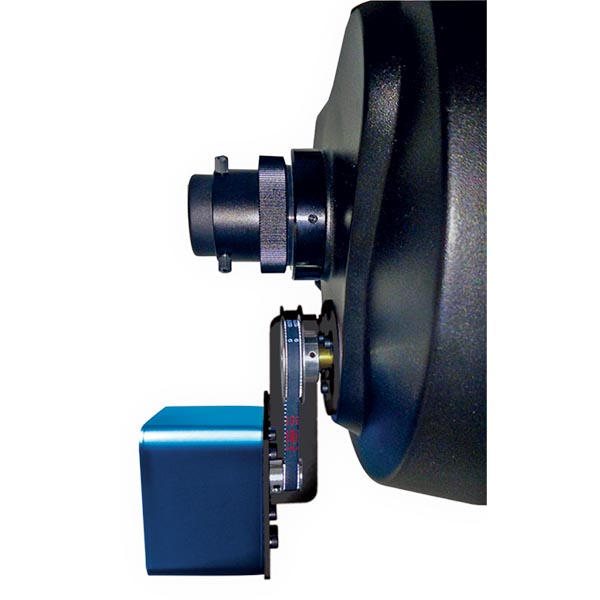

Accurately and quickly focus your telescope using our powerful Motor Focus Kit v2. This high resolution geared box has a 0.06 degree step size that can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover the motor’s gearbox has a low backlash which can be easily tuned using the backlash compensation found in most imaging software. The RJ45 socket can be converted to compatible Robofocus Pinout.

Note: You will also need a stepper controller to drive the motor, for example the Pegasus Astro Dual Motor Focus Controller

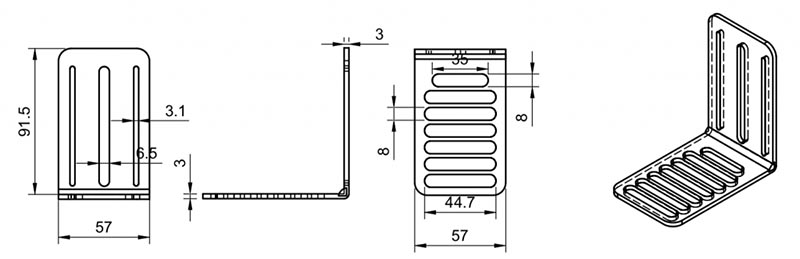

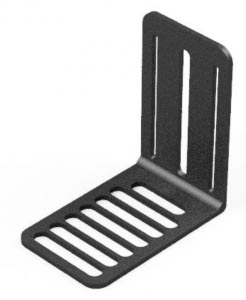

Universal L Shaped Bracket (Black Anodisation)

An L shaped black anodised aluminium bracket, hard to bend, has cut rails and can be attached to a wide range of focusers. In fact it has been successfully installed on:

Baader Diamond Steeltrack
Baader Steeltrack
Explore Scientific Focuser
MoonLite Focusers
Skywatcher Esprit Series Focuser
Starlight Feathertouch Series
Stellarvue Focusers
Takahashi Focusers
Vixen ED815
William Optics GT71
William Optics RedCat

Universal L shaped Bracket

Six different motor couplers in the package (bore diameter from 3mm to 8mm)

What the Motor Focus Kit package includes:

• High Resolution Stepper Geared Motor Enclosure (Step Angle 7.5, Deg 120, Gear Ratio 1:120).
• Universal Black Anodised Aluminium L shaped bracket for Motor
• 6 x Solid Motor Couplers (3mm to 8mm)
• Different sizes (Pairs of M3x10, M4x10, M4x30 M5x10, M6x10, ) of metric bolts and spacers

Technical Specifications
