What makes iPolar™ unique?

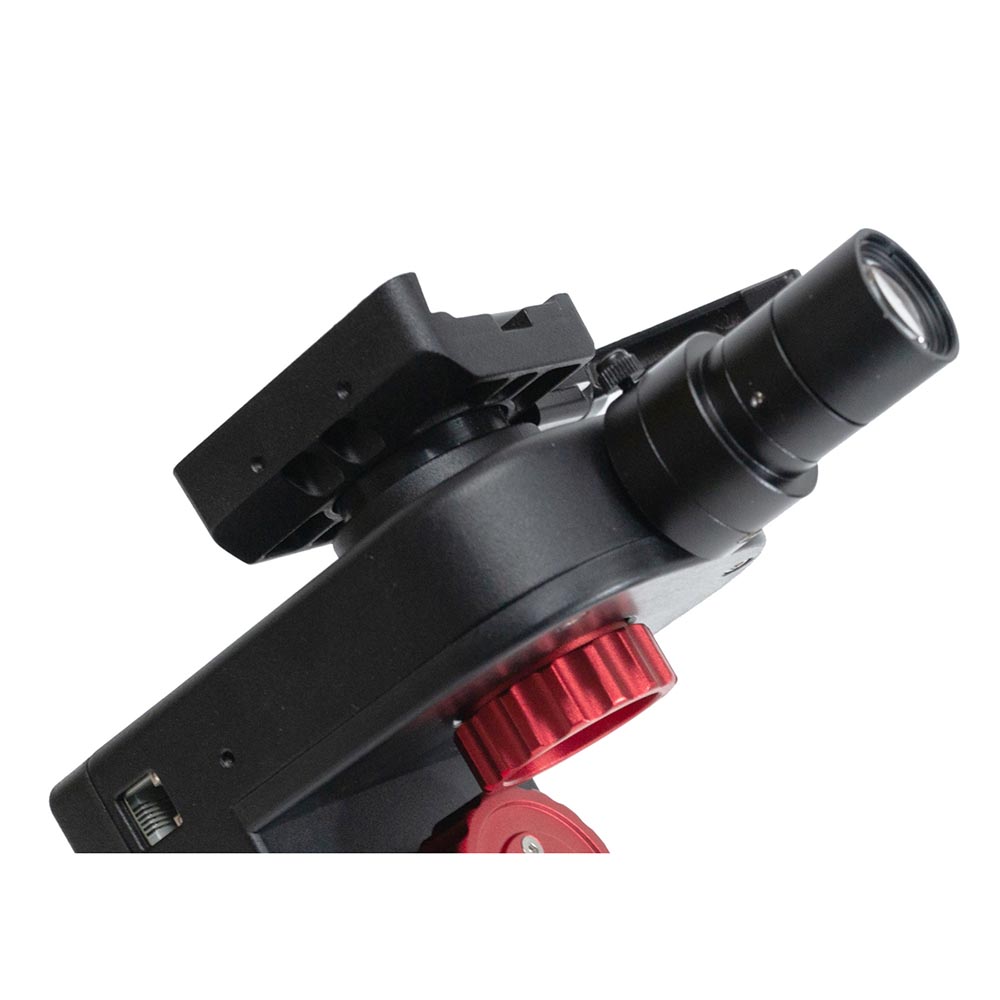

  1. Can be easily installed inside the RA shaft on all iOptron equatorial mounts (except SmartEQ Pro).
  2. Can be used on any mounts with adapters either internally or externally.
  3. USB plug and play (no driver needed)
  4. Works globally, no need to set northern and southern hemisphere.
  5. No visible Polaris (north) or Sigma Octantis (south) necessary.
  6. No need to rotate the mount during polar align.

iPolar™ is a smart electronic polarscope for everyone.

Features:

  • Fast and easy to use
  • High precision (30 arcsec)
  • No need to see the Pole Star
  • No need to rotate the mount during alignment
  • Unique imaging enhancement technique
  • Smart plate solving
  • On screen instruction during alignment
  • Capable under poor sky visibility condition
  • Compatible to most equatorial mount with a proper adapter

Optional mount adapters provide support for the following mounts:

  • HEM15/HEM27/HEM44 (#3339-SH)
  • HAE29/HAE43 (#3339-SH)
  • SkyHunter (#3339-SH)
  • CEM120/CEM120EC/CEM120EC2 (#3339A-120 or #3339A for replacement)
  • CEM70/CEM70G/CEM70EC/CEM79EC2/CEM70NUC (#3339A for replacement)
  • CEM60/CEM60EC (#3339-060 or #3339A-060:Will it fit my CEM60 internally?)
  • CEM40/CEM40EC/CEM40G/CEM40NUC (#3339A-040 or #3339A for replacement)
  • GEM45/GEM45EC/GEM45G/GEM45NUC (#3339A-HEM or #3339A for replacement)
  • CEM25/CEM25EC/ZEQ25 (#3339-025)
  • iEQ45Pro/iEQ45 (#3339-034)
  • iEQ30Pro/iEQ30 (#3339-034)
  • SkyGuider-Pro (IOPTRON-3339R)

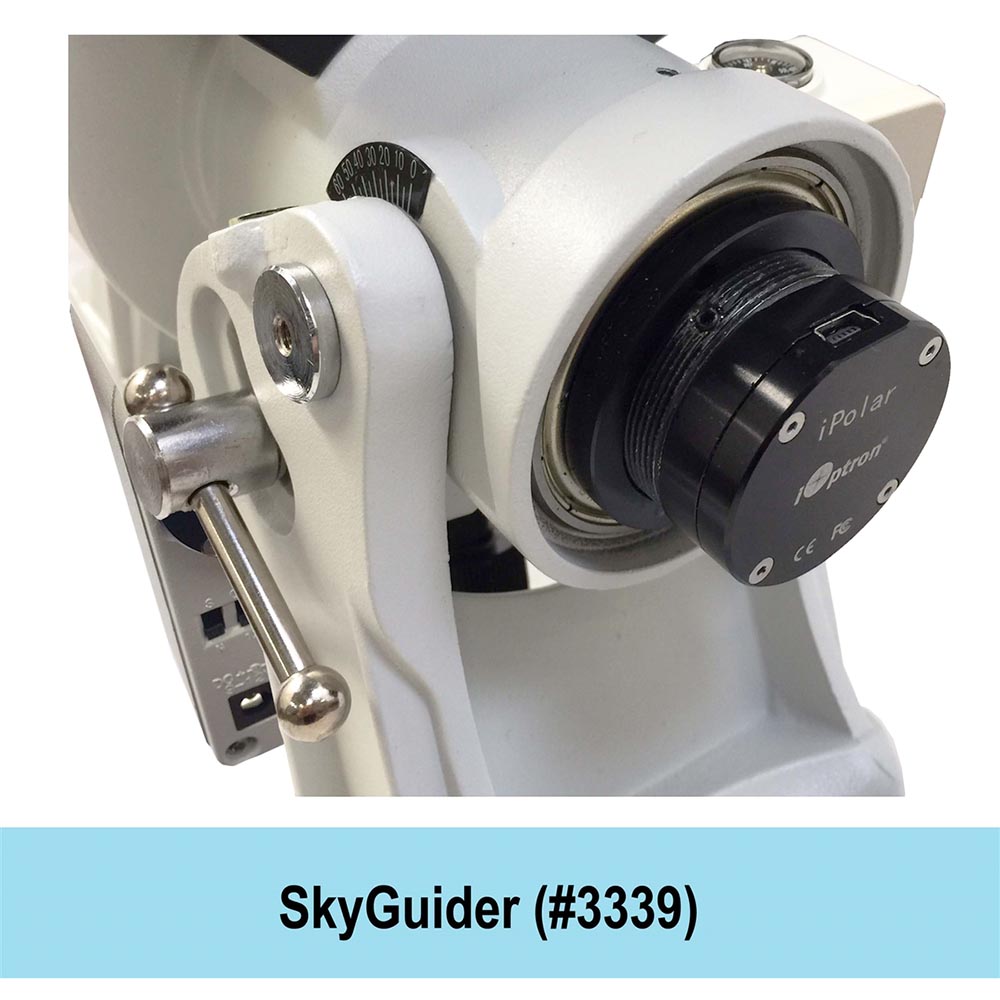

  • SkyGuider (#3339 or IOPTRON-3339R)

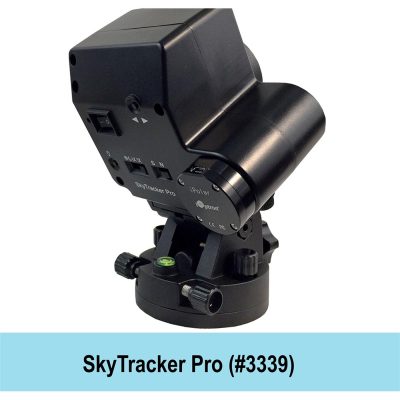

  • SkyTracker Pro (#3339 or IOPTRON-3339R)

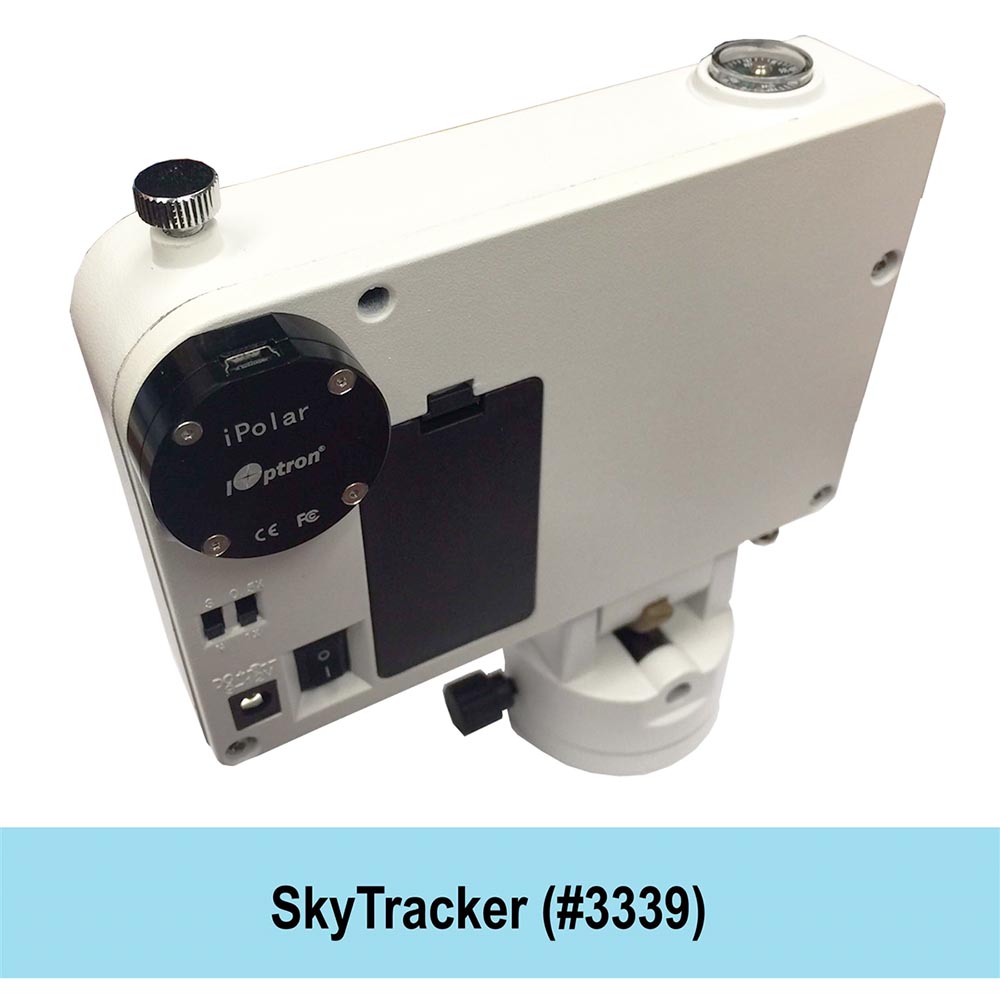

  • SkyTracker (#3339 or IOPTRON-3339R)
  • AVX mount (#3339-AVX)
  • CGEM/NEQ6/AZEQ6 mount (#3339-CGEM)
  • HEQ5 mount (#3339-HEQ5)
  • Takahashi mount (#3339-TAK)
  • Losmandy mount (#3339-034 for GM8xx mount, #3339-G11 for G11)

Please check this iPolar Compatibility Chart for more information.

Field of View (FOV) ~ 13 degree
Resolution 30 arcsec approx.
Alignment Precision (Max.) 30 arcsec
Interface Mini USB2.0
Software iPolar Software
Operation System Windows 7/8.1/10/11, 64 bit, with Microsoft .NET Framework 4.8 or later installed
Warranty One year limited

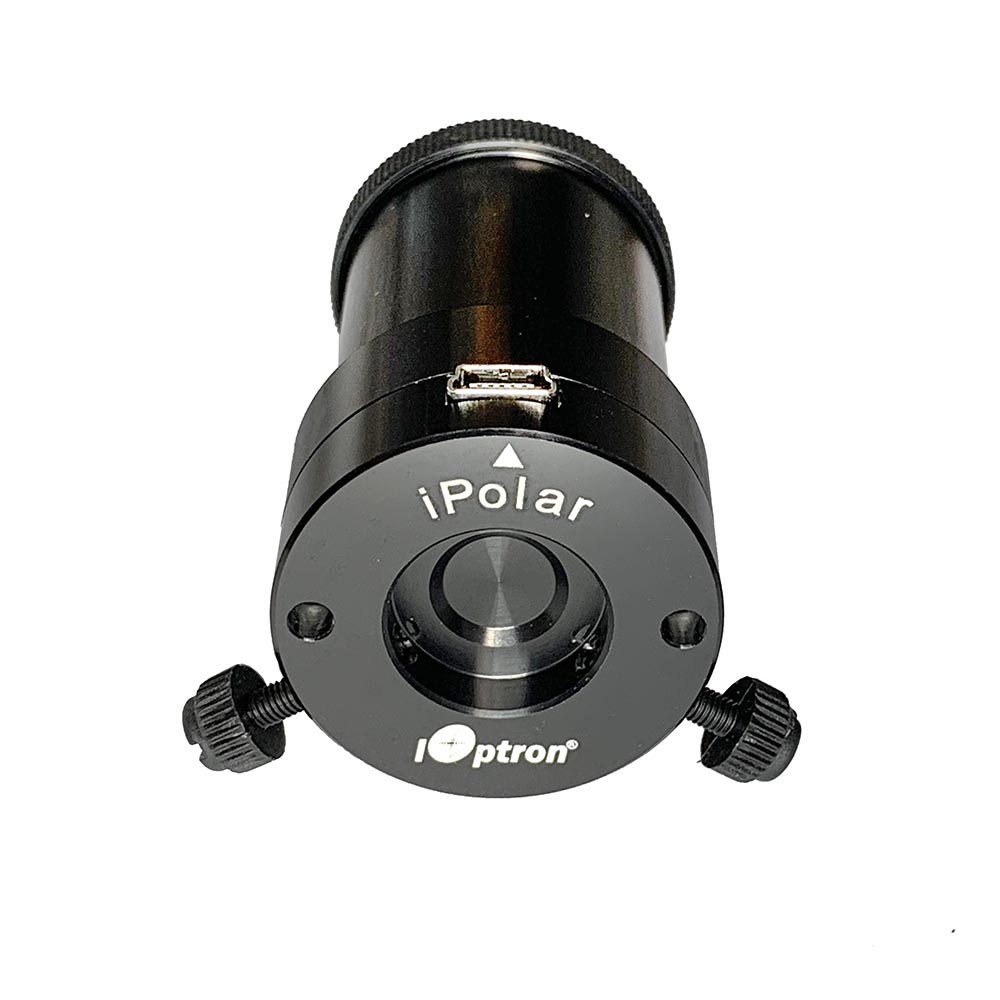

IOPTRON-3339-SH The new iOptron iPolar digital polarscope

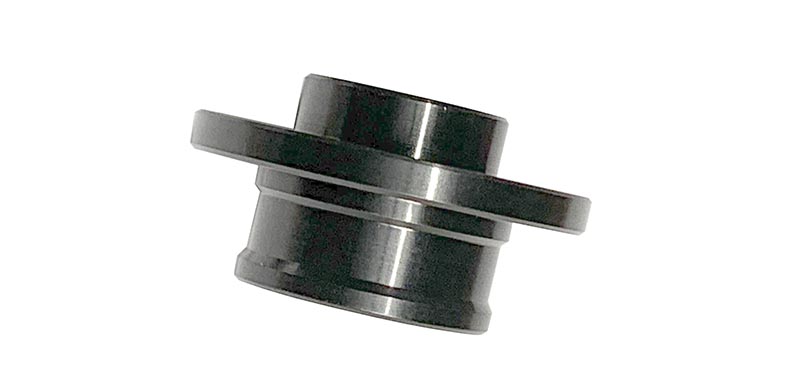

iOptron Backward Compatibilty Adapter iPolar backward compatibility adapter
iPolar USB cable

Manual:
iPolar Operation Manual (Updated 1/22/2022)
Installation-CEM25/ZEQ25 (#3339-025)
Installation-iEQ/iEQ Pro mount (#3339-034)
Installation-CEM60 Internal (#3339A-060) Please check if your mount needs a different adapter
Installation-CEM120 Internal (#3339A-120) Please read instruction before placing order
Installation-SkyGuider Pro (#3339R-SGP)
Installation-SkyGuider (non-pro) (#3339 or #3339R)
Installation-AVX,CGEM,HEQ5,TK (#3339-AVX and others)

Software and Driver:
The software is tested virus free. Please add it to your Windows defender/antivirus software White/Exclusion List if it is alarmed containing malware/virus.

iPolar Software (V2.72, released on 4/20/2023, needs Windows 64 bit system)
iPolar Software V2.50
Version History
iPolar for Mac (from mac store)

Frequently Asked Questions:
Please read
