The iOptron AZ/EQ HAE29C strain wave gear mount features light weight and a high payload. These little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8 lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29C brings this vision to reality.

Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAE29’s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

HAE29C dual SWG Alt-az/ Eq mounts now have an internal main board and no longer requires use with a handset. The mount has USB ports on both the mount base and saddle that connect directly to the main board for mount control and firmware upgrade. It also features a built-in Wi-Fi for connection.

An HAE29C mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

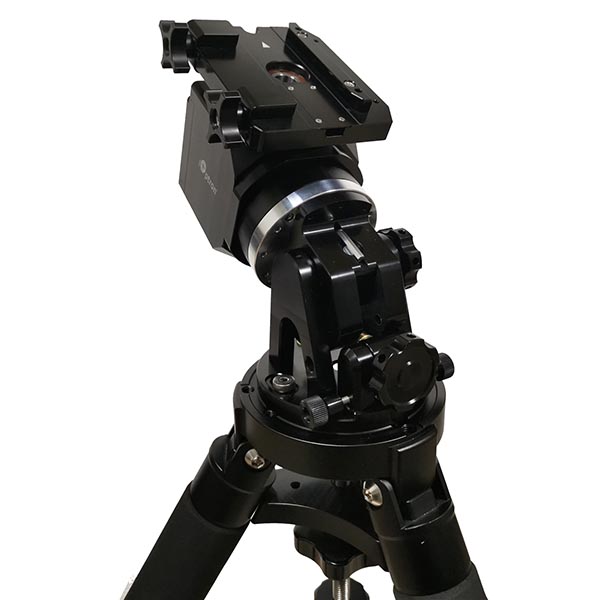

(Actual mount may differ from the image)

Features

• Advanced strain wave gear system technology
• Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs, include dovetail saddle)
• CNC machined
• Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
• 360 second gear period
• Customer cable management system ready
• Dual saddle (Vixen and Losmandy-D styles)
• Built in zero position search and locator
• Power down position and location memory
• Integrated ST-4 autoguiding port
• Built-in Wi-Fi
• USB port for firmware upgrade and computer control

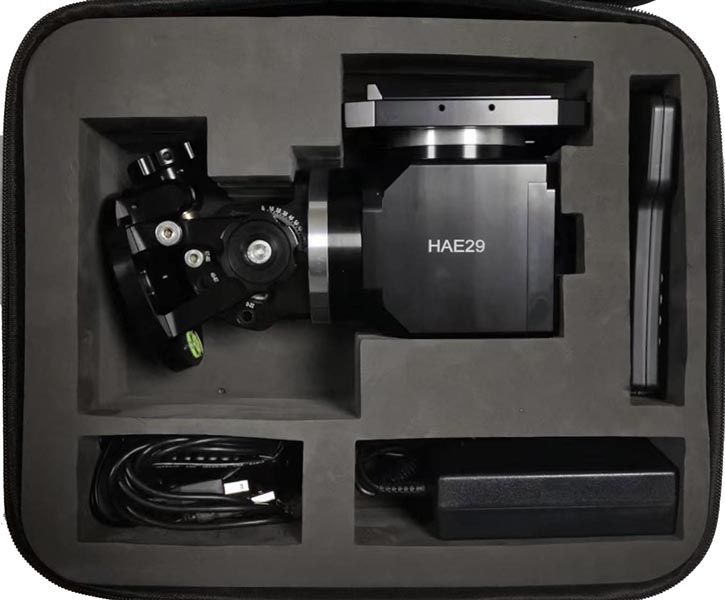

• Carrying case
• Two year warranty
