Baader CMOS Optimized LRGB Filters

Elevate your astrophotography to new heights with the Baader LRGB CMOS-Optimized Filter Set. This meticulously engineered set of filters is designed to maximize the performance of your CMOS sensor, enabling you to capture celestial wonders with unparalleled clarity and color accuracy.

This new generation of Baader CMOS-filters features:

  • Increased contrast, matched for typical CMOS quantum efficiency and s/n ratio
  • Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
  • Identical filter thickness to existing standards, with utmost care for parfocality
  • Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
  • Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed)
  • Life-Coatâ„¢: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
  • Anti-reflection RGB filter (red/green/blue) with extremely high transmission of the respective color channel, thus simultaneously reducing stray light and reflections to an unprecedented level
  • Including UV/IR cut (L-filter) with 98% transmission over the entire visible spectrum from 420 – 685
  • Balanced RGB design allows subframes to be taken with the same exposure time – extremely important for automated imaging tasks
  • Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies

Transform your stargazing and astrophotography into a vibrant, vivid experience with the Baader LRGB CMOS-Optimized Filter Set. Capture the wonders of the universe with precision and color accuracy like never before.

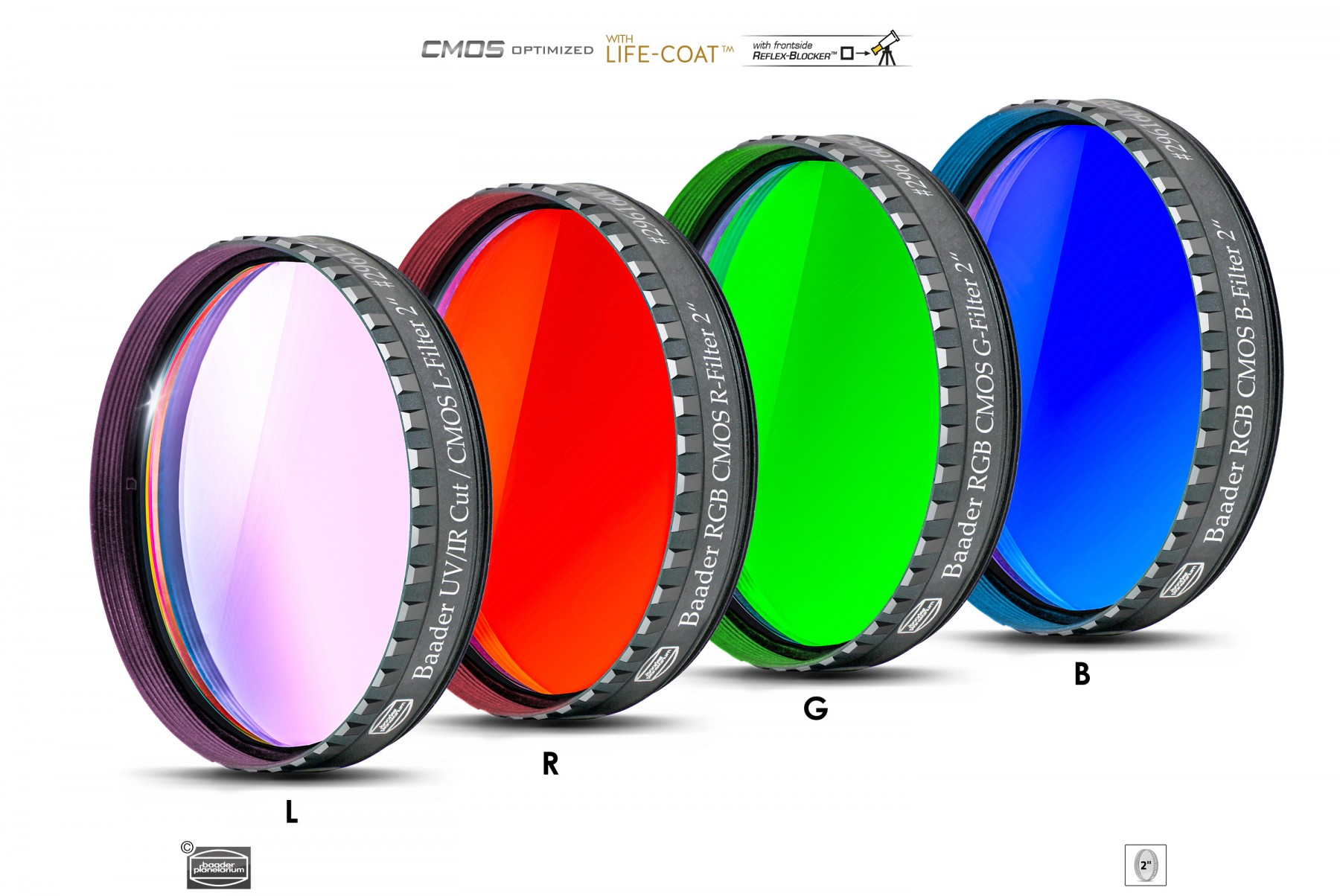

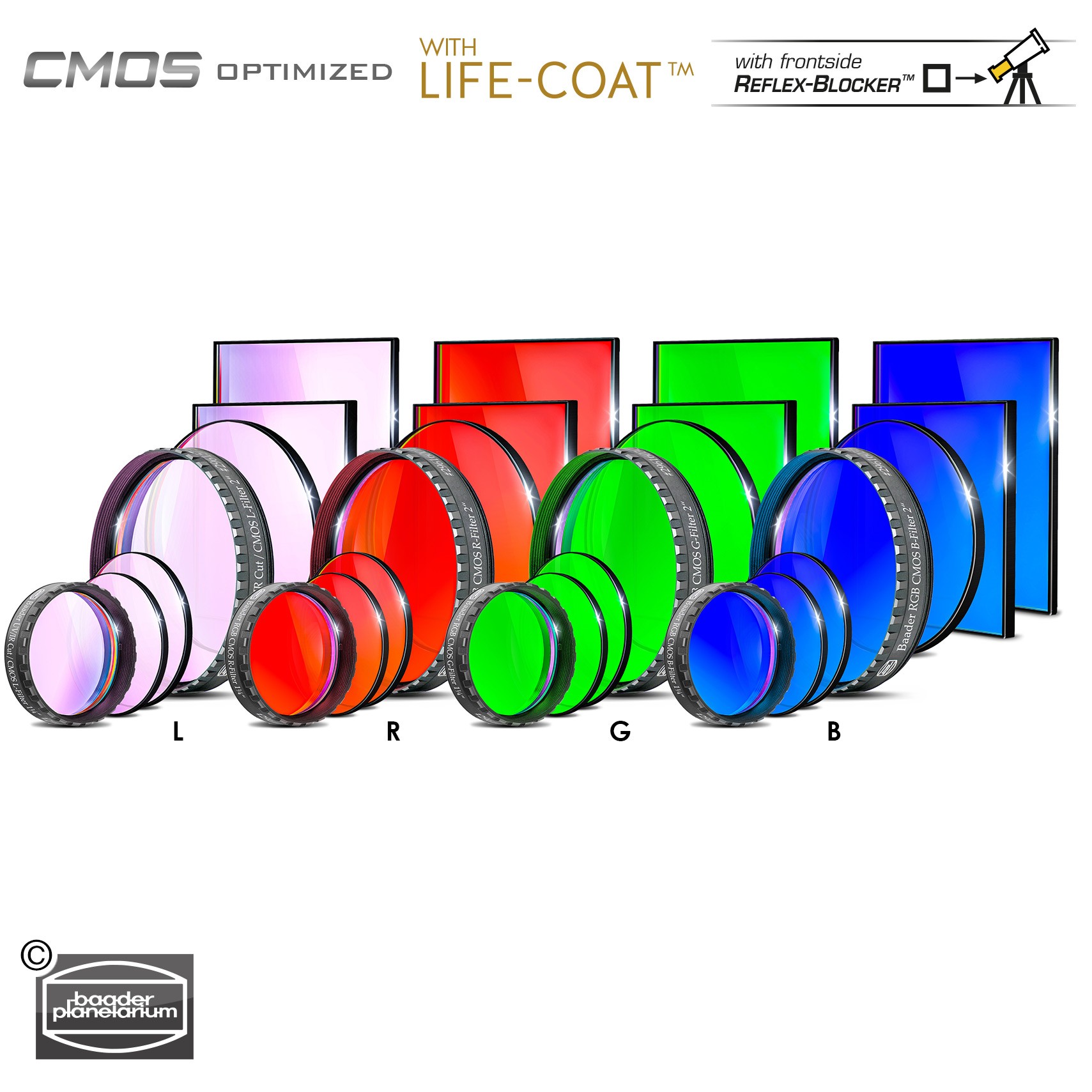

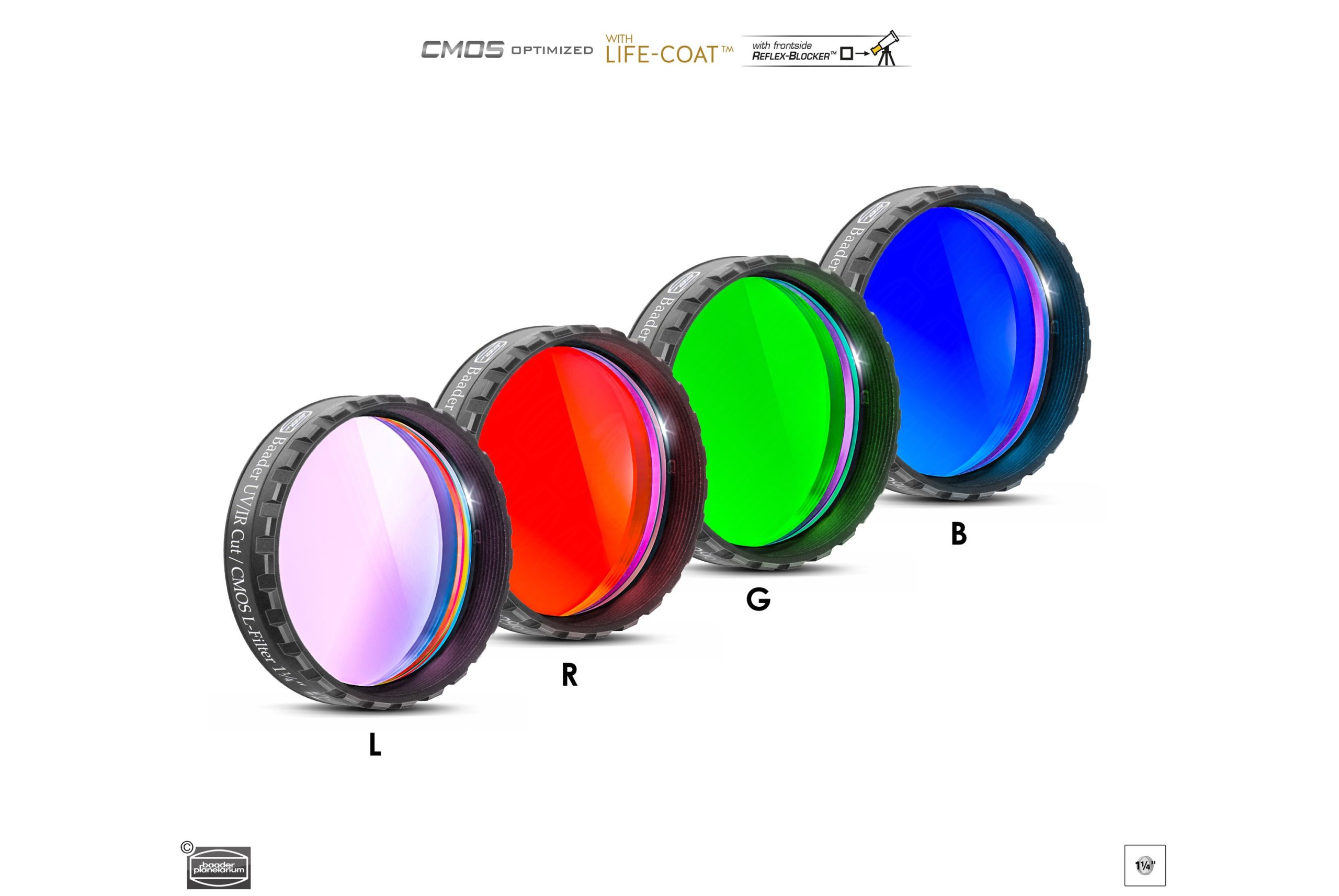

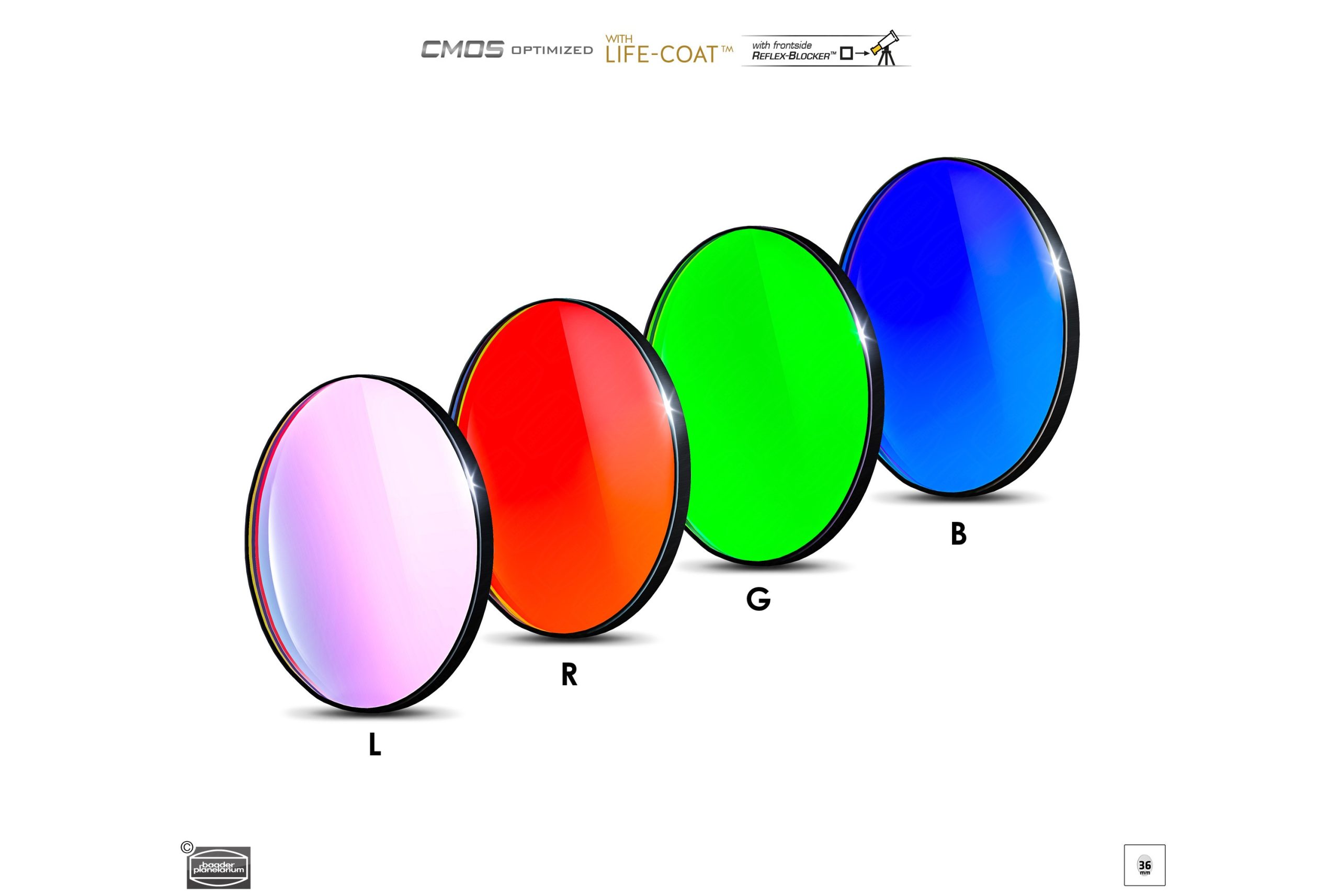

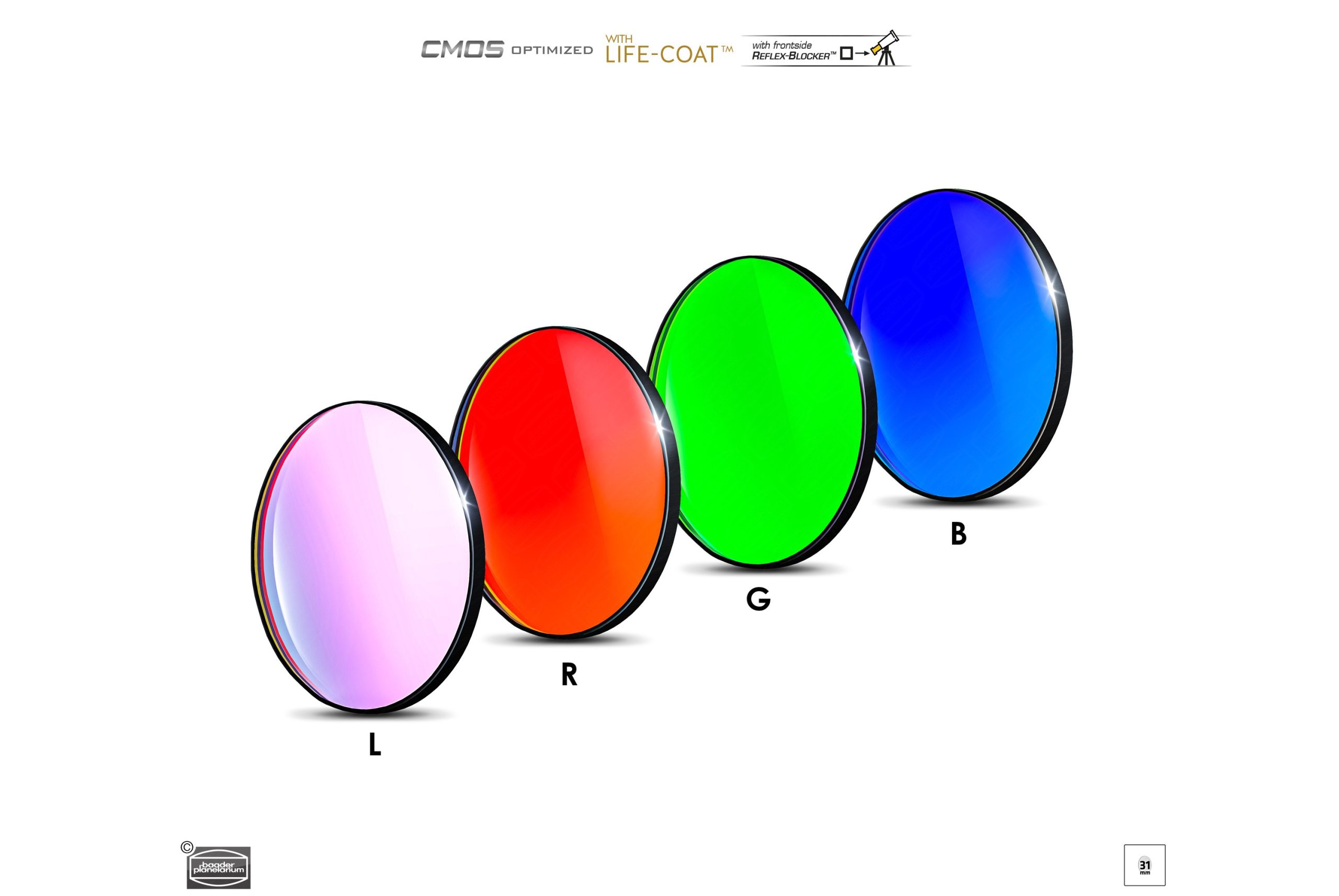

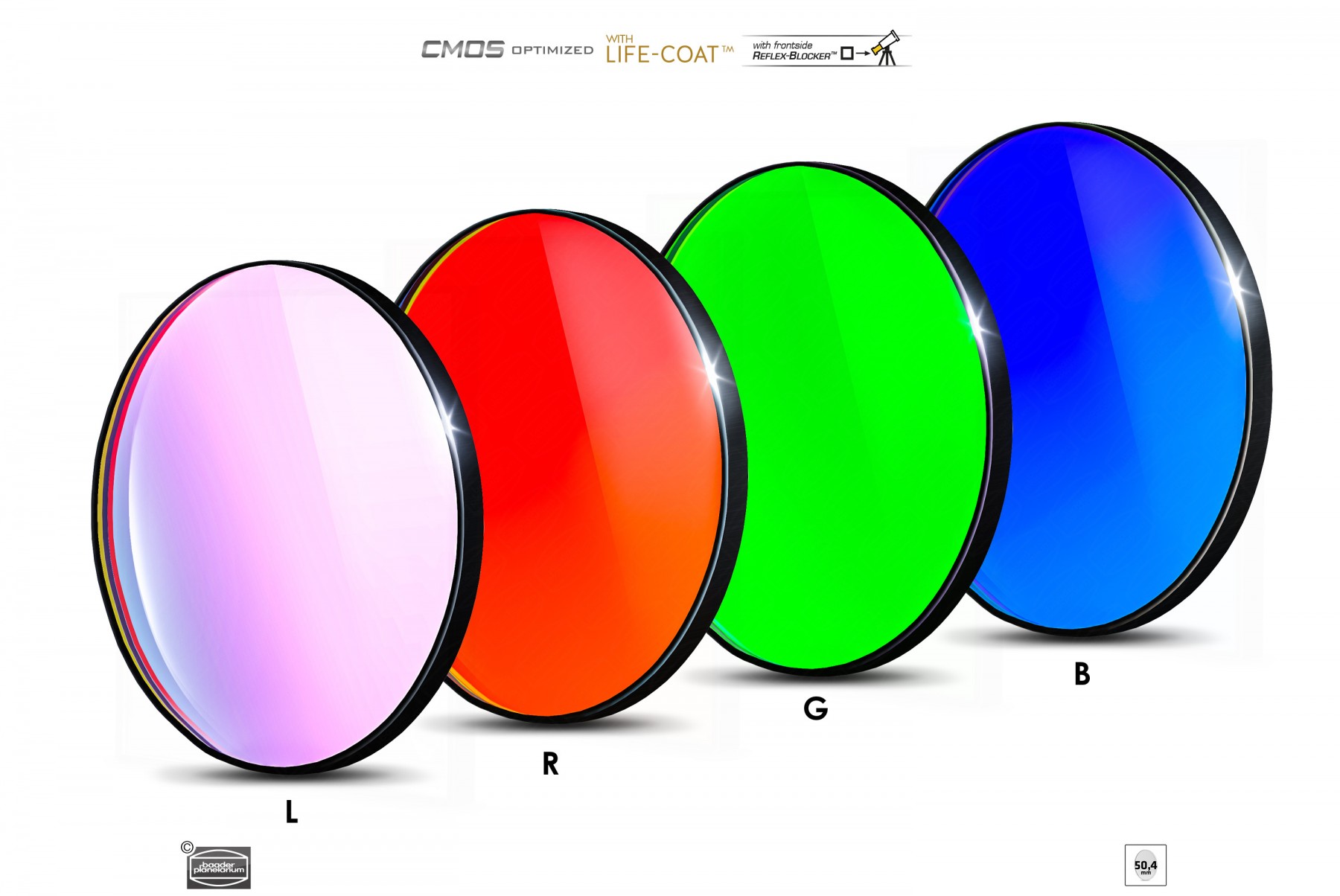

Baader LRGB Filter Set

Filter Size

1.25 inch, 2inch, 31mm, 36mm, 50.4mm

MANUFACTURER Baader Planetarium
NET WEIGHT (KG) 0.06 (1.25inch,31mm,36mm) , 0.07(2″,50.4mm)
SUITABLE FOR F/RATIO f/15 to f/1.8

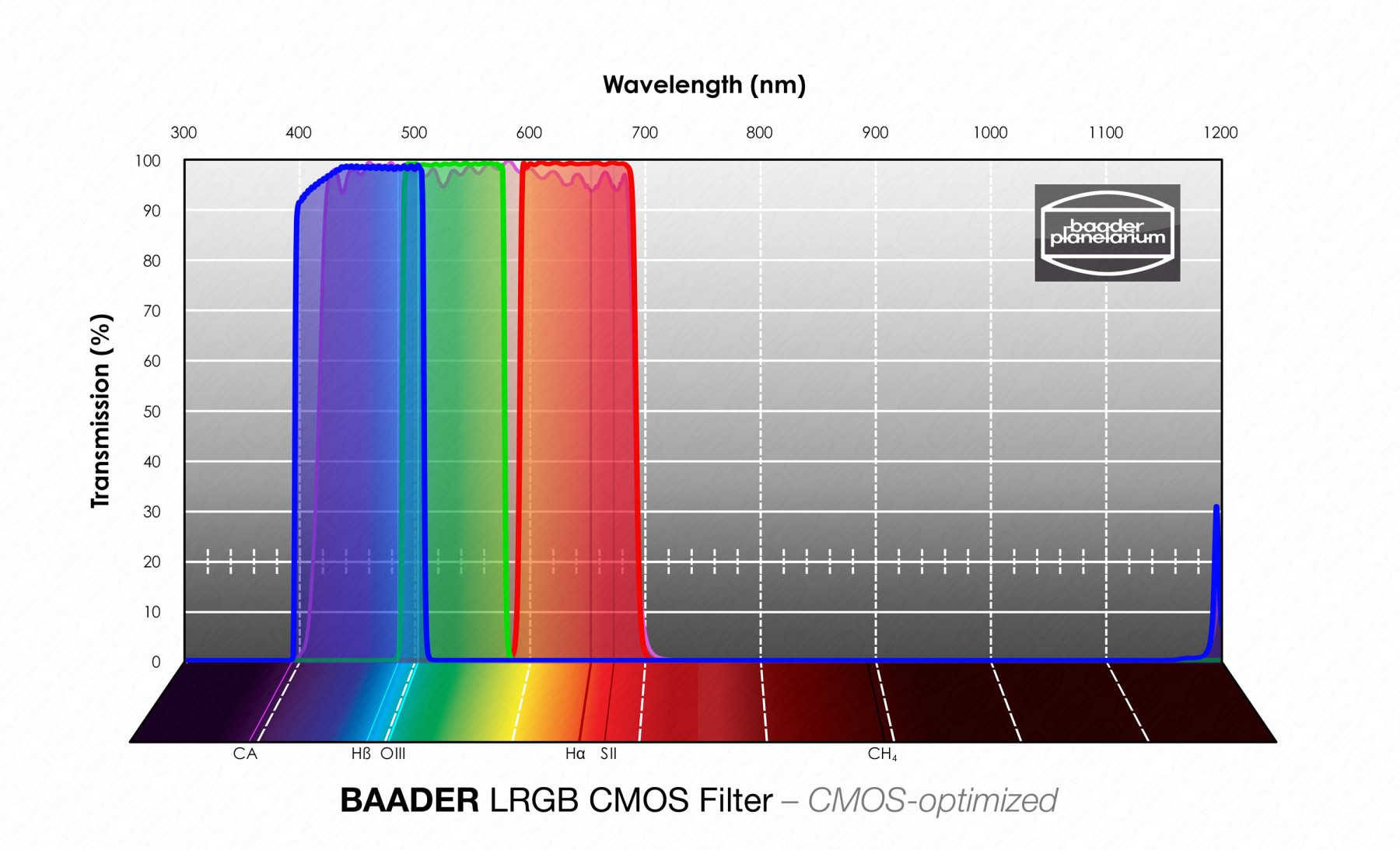

TRANSMISSION RANGE L (420 – 685 nm), R (595 – 690 nm), G (490 – 580 nm), B (400 – 510 nm)
FILTER THICKNESS (WITHOUT CELL) 2 mm
CWL (CENTRAL WAVELENGTH) LRGB
AR-COATING Reflex-Blockerâ„¢ hard coated, planeoptically polished
SPECIAL FEATURES CMOS-optimized with Life-Coat™
FILTER USAGE CMOS, CCD, IR-Cut, Luminance, RGB, UV-Cut
FILTER MOUNTED Mounted (LPFC 6mm)
TYPE OF FILTER Bandpass
SINGLE OR SET? Filter-Set
FILTER SHAPE round

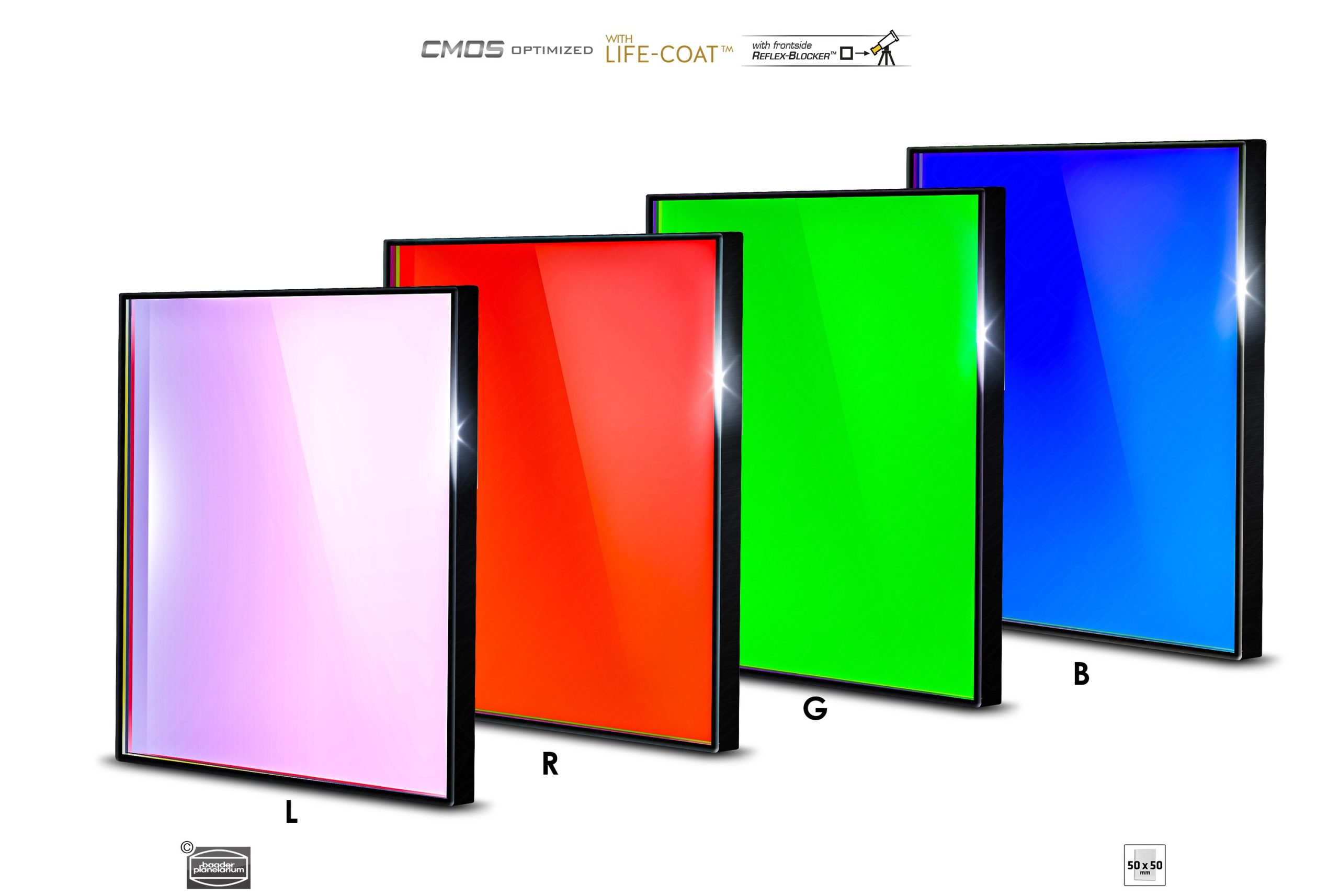

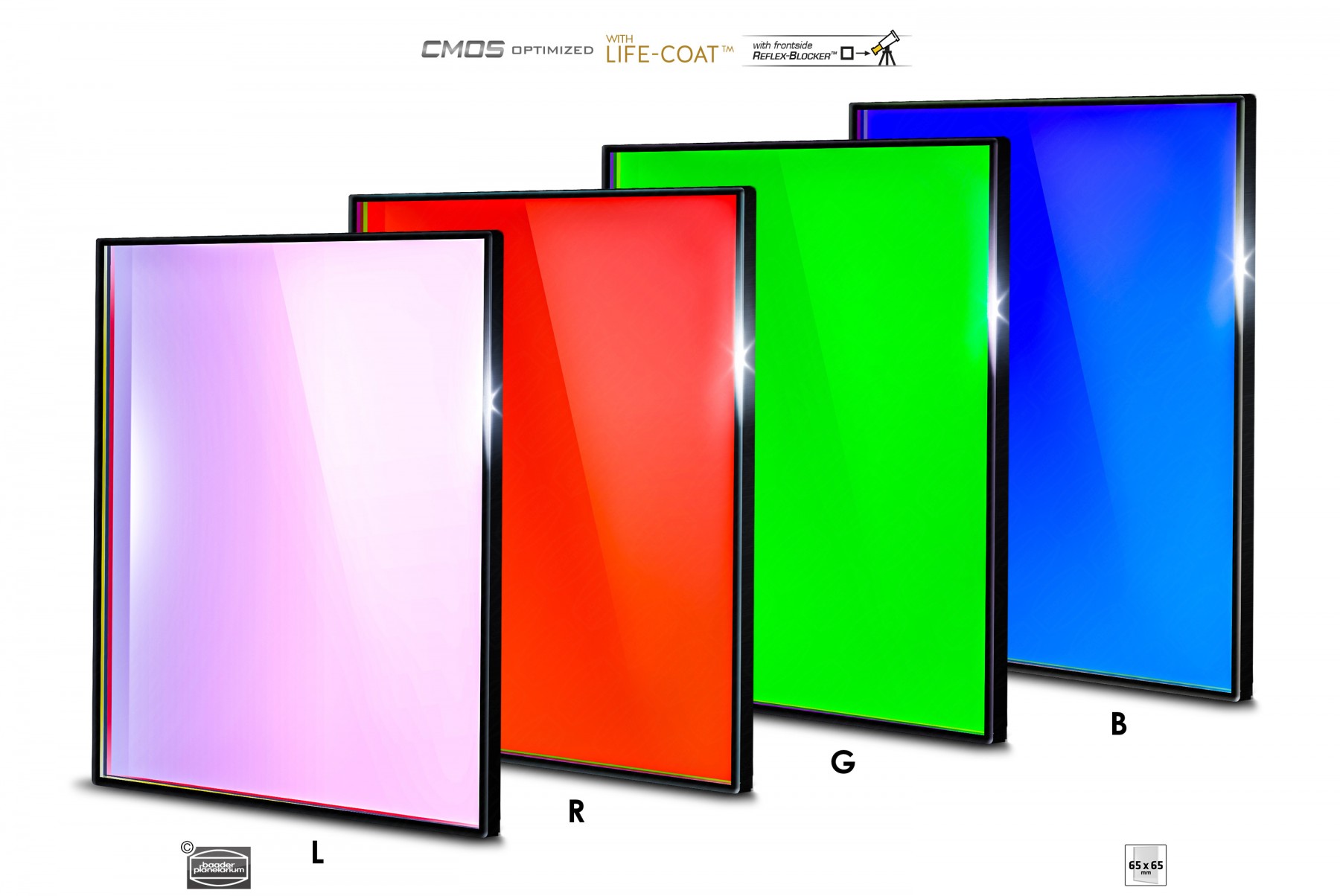

Filter Size

50x50mm, 65x65mm

MANUFACTURER Baader Planetarium
NET WEIGHT (KG) 0.07
SUITABLE FOR F/RATIO f/15 to f/1.8
TRANSMISSION RANGE L (420 – 685 nm), R (595 – 690 nm), G (490 – 580 nm), B (400 – 510 nm)
FILTER THICKNESS (WITHOUT CELL) 3 mm
CWL (CENTRAL WAVELENGTH) LRGB
AR-COATING Reflex-Blockerâ„¢ hard coated, planeoptically polished
SPECIAL FEATURES CMOS-optimized with Life-Coat™
FILTER USAGE CMOS, CCD, IR-Cut, Luminance, RGB, UV-Cut
FILTER MOUNTED Unmounted
TYPE OF FILTER Bandpass
SINGLE OR SET? Filter-Set
FILTER SHAPE square
